SKU: SFT15EC-RHP

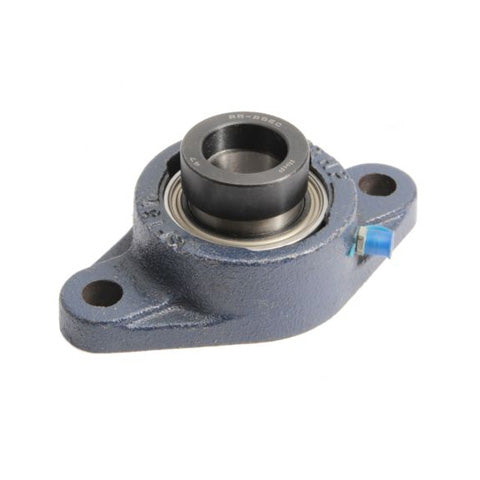

RHP SFT15EC Two Bolt Oval Cast Iron Flange Housing 15mm Bore Insert
RHP SFT15EC Two Bolt Oval Cast Iron Flange Housing 15mm Bore Insert
Regular price
$43.70
ex VAT
Regular price
Sale price
$43.70
ex VAT
In stock
Price Break
10+
$29.28
20+
$27.63
30+
$27.30
40+
$26.97
50+
$26.64
75+
$26.31
100+
$24.67
200+
$24.34
250+
$24.01
500+
$23.68
1000+
$23.03
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 15mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A2 | 39.01mm |
| A4 | 9.5mm |
| B2 | 28.54mm |
| s1 | 6.55mm |
| d2 | 28.58mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-15ECG+insonly">1217-15ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
