SKU: SFT2.1/4-RHP

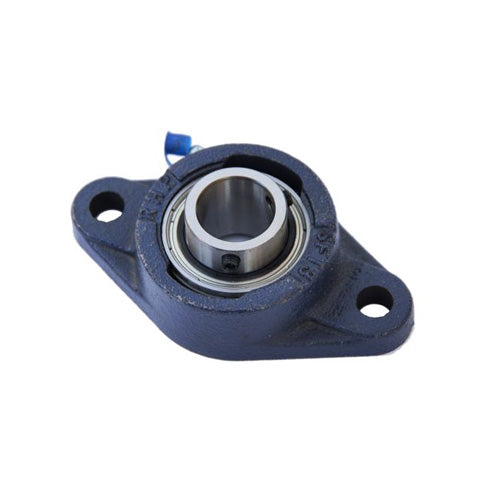

RHP SFT2-1/4 Two Bolt Oval Cast Iron Flange Housing 2-1/4 inch Bore Insert
RHP SFT2-1/4 Two Bolt Oval Cast Iron Flange Housing 2-1/4 inch Bore Insert
Regular price
$177.39
ex VAT
Regular price
Sale price
$177.39
ex VAT
In stock
Price Break
10+
$118.82
20+
$112.15
30+
$110.81
40+
$109.48
50+
$108.14
75+
$106.81
100+
$100.13
200+
$98.79
250+
$97.46
500+
$96.12
1000+
$93.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- SFT
- Bolt Hole Centres:
- 202.01mm = 7.953 (7-61/64) inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 5.437 inch |
| H | 9.252 inch |
| J | 7.953 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A1 | 2.901 inch |
| A4 | 0.689 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
