SKU: SFT20-RHP

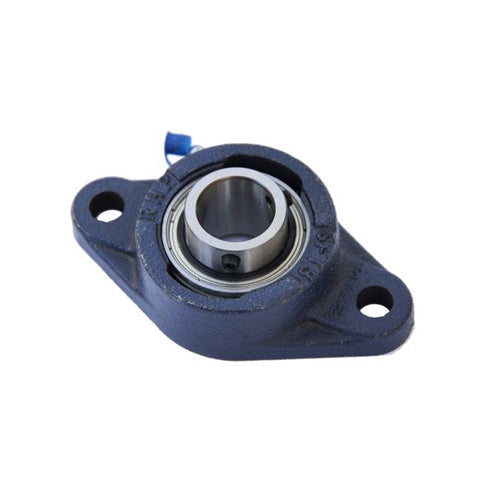

RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
$41.64
ex VAT
Regular price
Sale price
$41.64
ex VAT
In stock
Price Break
10+
$27.89
20+
$26.33
30+
$26.01
40+
$25.70
50+
$25.39
75+
$25.07
100+
$23.51
200+
$23.19
250+
$22.88
500+
$22.57
1000+
$21.94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SFT
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 60.3mm |
| H | 111.9mm |
| J | 90mm |
| G | 10mm |
| A | 27.8mm |
| A1 | 37.26mm |
| A4 | 11.1mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
