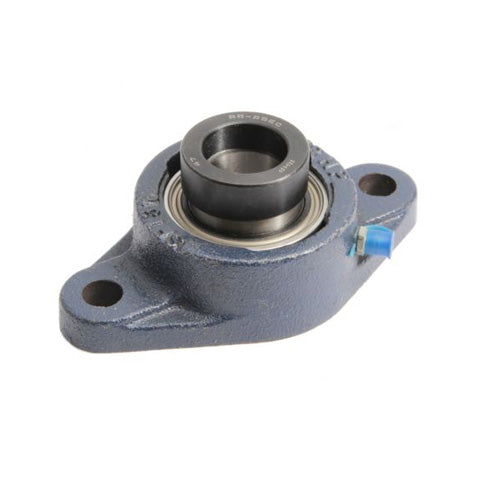

• RHP SFT20DEC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
1 1

SKU: SFT20DEC-RHP

RHP SFT20DEC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert

RHP SFT20DEC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
$52.26 ex VAT
$52.26 ex VAT
Sale Sold out

In stock

Price Break
10+ $35.00
20+ $33.03
30+ $32.64
40+ $32.25
50+ $31.86
75+ $31.46
100+ $29.50
200+ $29.10
250+ $28.71
500+ $28.32
1000+ $27.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
SFT
Bolt Hole Centres:
90mm
Technical
Bore 20mm
L 60.3mm
H 111.9mm
J 90mm
G 10mm
A 27.8mm
A3 45.54mm
A4 11.1mm
B3 43.62mm
s2 17.12mm
d2 33.3mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.6 kg
Insert <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
