SKU: SFT20EC-RHP

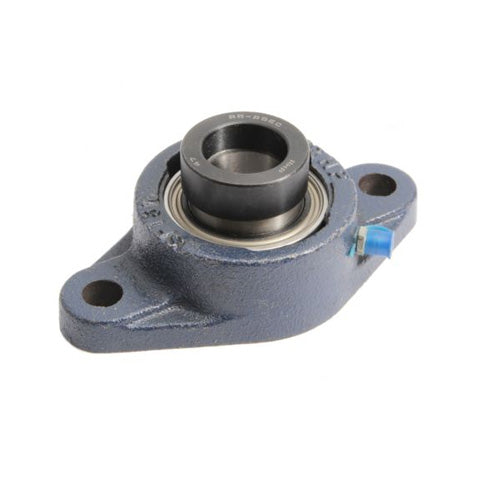

RHP SFT20EC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert

Name: RHP SFT20EC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Brand: RHP
SKU: SFT20EC-RHP
Price: 44.98 USD
Availability: InStock

$44.98 ex VAT

Sale Sold out

In stock

Price Break

10+ $30.12

20+ $28.43

30+ $28.09

40+ $27.75

50+ $27.42

75+ $27.08

100+ $25.39

200+ $25.05

250+ $24.71

500+ $24.37

1000+ $23.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 20mm
Style:: SFT
Bolt Hole Centres:: 90mm

Technical

Bore	20mm
L	60.3mm
H	111.9mm
J	90mm
G	10mm
A	27.8mm
A2	42.42mm
A4	11.1mm
B2	30.92mm
s1	7.56mm
d2	33.3mm
Dynamic load Cr	12800 N
Static load Cor	6650 N
Rec max speed	6700 rpm
Weight	0.6 kg
Insert	<a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a>
Casting group	2
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
