SKU: SFT25DEC-RHP

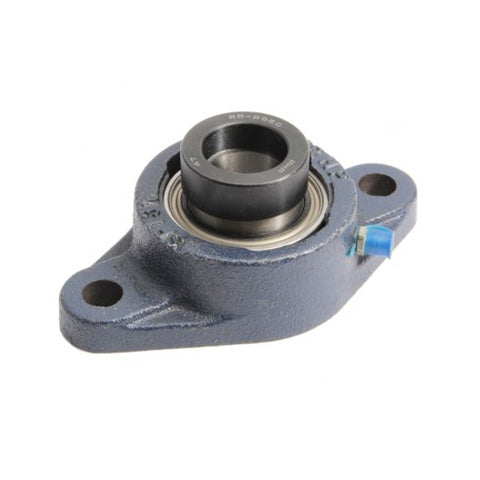

RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert

Name: RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Brand: RHP
SKU: SFT25DEC-RHP
Price: 59.19 USD
Availability: InStock

$59.19 ex VAT

Sale Sold out

In stock

Price Break

10+ $39.65

20+ $37.42

30+ $36.97

40+ $36.53

50+ $36.08

75+ $35.64

100+ $33.41

200+ $32.97

250+ $32.52

500+ $32.07

1000+ $31.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 25mm
Style:: SFT
Bolt Hole Centres:: 99mm

Technical

Bore	25mm
L	68.3mm
H	123.8mm
J	99mm
G	10mm
A	28.6mm
A3	45.95mm
A4	11.1mm
B3	44.4mm
s2	17.49mm
d2	38.1mm
Dynamic load Cr	14000 N
Static load Cor	7880 N
Rec max speed	6250 rpm
Weight	0.9 kg
Insert	<a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a>
Casting group	3
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
