SKU: SFT2DEC-RHP

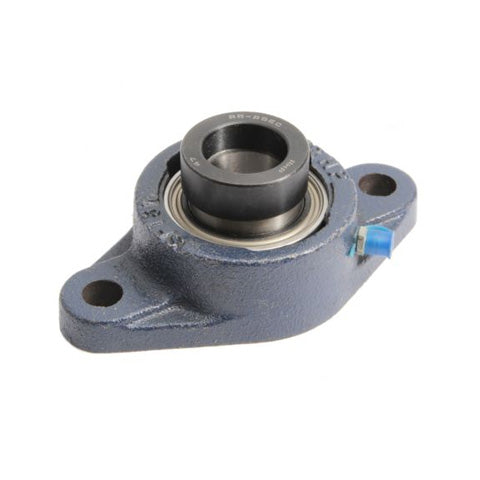

RHP SFT2DEC Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
RHP SFT2DEC Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
Regular price
$178.71
ex VAT
Regular price
Sale price
$178.71
ex VAT
In stock
Price Break
10+
$119.70
20+
$112.98
30+
$111.63
40+
$110.29
50+
$108.94
75+
$107.60
100+
$100.87
200+
$99.53
250+
$98.18
500+
$96.84
1000+
$94.15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SFT
- Bolt Hole Centres:
- 183.998mm = 7.244 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 5 inch |
| H | 8.5 inch |
| J | 7.244 inch |
| G | 0.625 inch |
| A | 1.72 inch |
| A3 | 2.936 inch |
| A4 | 0.689 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
