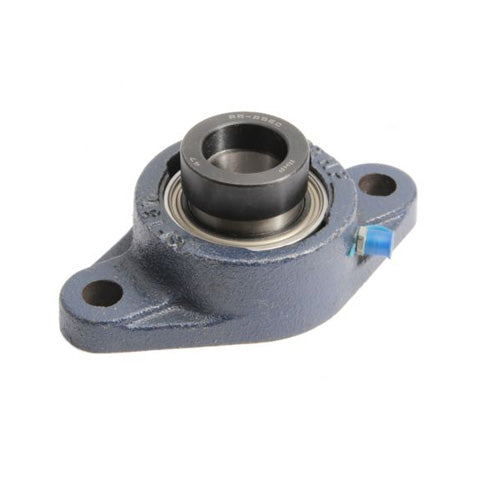

• RHP SFT3/4EC Two Bolt Oval Cast Iron Flange Housing 3/4 inch Bore Insert
1 1

SKU: SFT3/4EC-RHP

RHP SFT3/4EC Two Bolt Oval Cast Iron Flange Housing 3/4 inch Bore Insert

RHP SFT3/4EC Two Bolt Oval Cast Iron Flange Housing 3/4 inch Bore Insert
$48.66 ex VAT
$48.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $32.59
20+ $30.76
30+ $30.40
40+ $30.03
50+ $29.66
75+ $29.30
100+ $27.47
200+ $27.10
250+ $26.73
500+ $26.37
1000+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
SFT
Bolt Hole Centres:
89.99mm = 3.543 inch
Technical
Bore 3/4 inch
L 2.374 inch
H 4.406 inch
J 3.543 inch
G 0.375 inch
A 1.094 inch
A2 1.67 inch
A4 0.437 inch
B2 1.217 inch
s1 0.298 inch
d2 1.311 inch
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.6 kg
Insert <a href="advanced_search_result.php?keywords=1220-3/4ECG+insonly">1220-3/4ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
