• RHP SFT30DEC Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
1 1

SKU: SFT30DEC-RHP

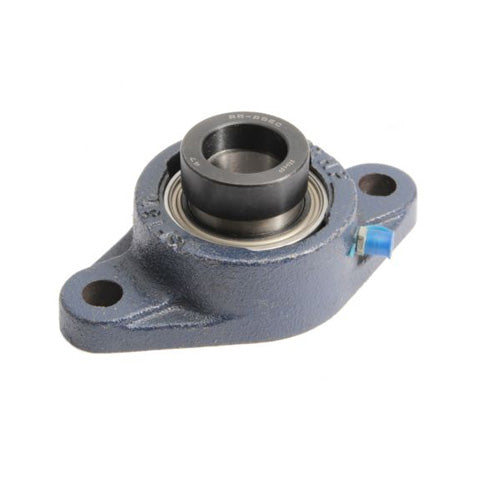

RHP SFT30DEC Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert

RHP SFT30DEC Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
$71.76 ex VAT
$71.76 ex VAT
Sale Sold out

In stock

Price Break
10+ $48.07
20+ $45.37
30+ $44.83
40+ $44.29
50+ $43.75
75+ $43.21
100+ $40.51
200+ $39.96
250+ $39.42
500+ $38.88
1000+ $37.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SFT
Bolt Hole Centres:
116.5mm
Technical
Bore 30mm
L 82.6mm
H 141.3mm
J 116.5mm
G 10mm
A 29.8mm
A3 50.09mm
A4 12.7mm
B3 48.42mm
s2 18.32mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-30DECG+insonly">1030-30DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
