SKU: SFT35DEC-RHP

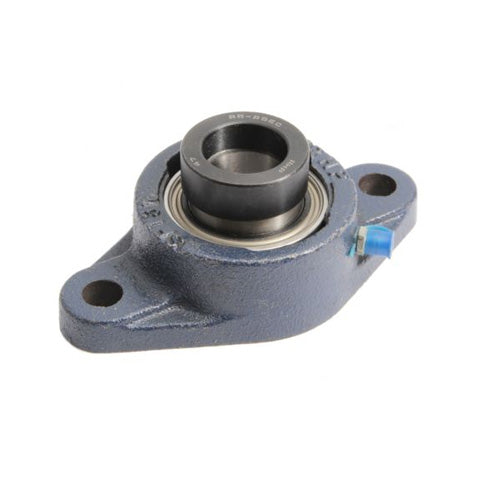

RHP SFT35DEC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35DEC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
$83.11
ex VAT
Regular price
Sale price
$83.11
ex VAT
In stock
Price Break
10+
$55.67
20+
$52.54
30+
$51.92
40+
$51.29
50+
$50.67
75+
$50.04
100+
$46.91
200+
$46.29
250+
$45.66
500+
$45.04
1000+
$43.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A3 | 53.31mm |
| A4 | 12.7mm |
| B3 | 51.18mm |
| s2 | 18.89mm |
| d2 | 55.58mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
