• RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
1 1

SKU: SFT35EC-RHP

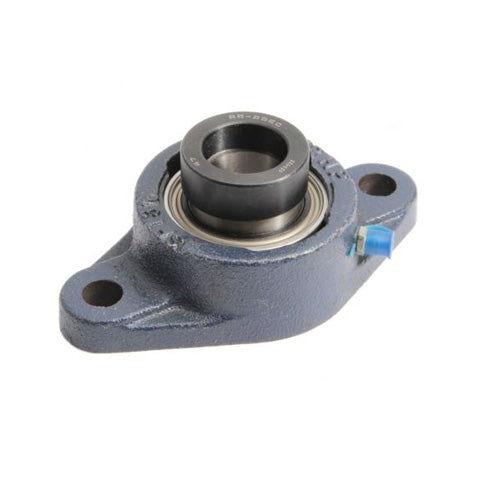

RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert

RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
$71.88 ex VAT
$71.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $48.15
20+ $45.44
30+ $44.90
40+ $44.36
50+ $43.82
75+ $43.28
100+ $40.57
200+ $40.03
250+ $39.49
500+ $38.95
1000+ $37.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SFT
Bolt Hole Centres:
130mm
Technical
Bore 35mm
L 95.5mm
H 155.5mm
J 130mm
G 12mm
A 31.4mm
A2 50.34mm
A4 12.7mm
B2 38.88mm
s1 9.55mm
d2 55.58mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
