• RHP SFT40DEC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
1 1

SKU: SFT40DEC-RHP

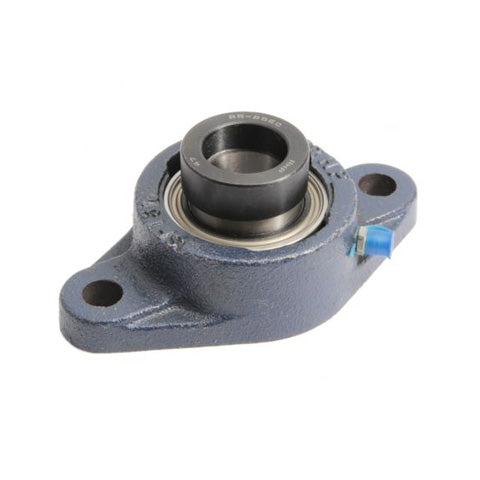

RHP SFT40DEC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert

RHP SFT40DEC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
$96.69 ex VAT
$96.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $64.76
20+ $61.12
30+ $60.40
40+ $59.67
50+ $58.94
75+ $58.21
100+ $54.57
200+ $53.85
250+ $53.12
500+ $52.39
1000+ $50.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
SFT
Bolt Hole Centres:
143.5mm
Technical
Bore 40mm
L 101.6mm
H 171.4mm
J 143.5mm
G 12mm
A 34.9mm
A3 58.9mm
A4 12.7mm
B3 56.34mm
s2 21.46mm
d2 60.3mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 1.9 kg
Insert <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
