SKU: SFT40EC-RHP

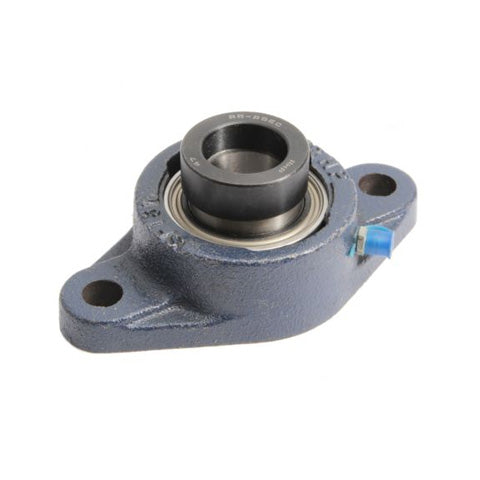

RHP SFT40EC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert

Name: RHP SFT40EC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Brand: RHP
SKU: SFT40EC-RHP
Price: 84.49 USD
Availability: InStock

$84.49 ex VAT

Sale Sold out

In stock

Price Break

10+ $56.60

20+ $53.42

30+ $52.78

40+ $52.15

50+ $51.51

75+ $50.88

100+ $47.70

200+ $47.06

250+ $46.42

500+ $45.79

1000+ $44.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 40mm
Style:: SFT
Bolt Hole Centres:: 143.5mm

Technical

Bore	40mm
L	101.6mm
H	171.4mm
J	143.5mm
G	12mm
A	34.9mm
A2	56.62mm
A4	12.7mm
B2	43.64mm
s1	11.05mm
d2	60.3mm
Dynamic load Cr	32500 N
Static load Cor	19900 N
Rec max speed	4000 rpm
Weight	1.9 kg
Insert	<a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a>
Casting group	6
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
