SKU: SFT45-RHP

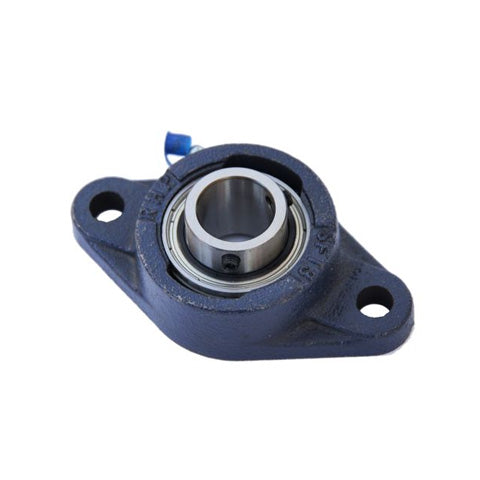

RHP SFT45 Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert

Name: RHP SFT45 Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Brand: RHP
SKU: SFT45-RHP
Price: 88.98 USD
Availability: InStock

$88.98 ex VAT

Sale Sold out

In stock

Price Break

10+ $59.61

20+ $56.26

30+ $55.59

40+ $54.92

50+ $54.25

75+ $53.58

100+ $50.23

200+ $49.56

250+ $48.89

500+ $48.22

1000+ $46.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 45mm
Style:: SFT
Bolt Hole Centres:: 148.5mm

Technical

Bore	45mm
L	111.1mm
H	179.4mm
J	148.5mm
G	16mm
A	35.3mm
A1	54.18mm
A4	14.3mm
B	49.23mm
s	19.1mm
d1	57.3mm
Dynamic load Cr	32500 N
Static load Cor	20500 N
Rec max speed	3700 rpm
Weight	2.2 kg
Insert	<a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a>
Casting group	7
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
