SKU: SFT45DEC-RHP

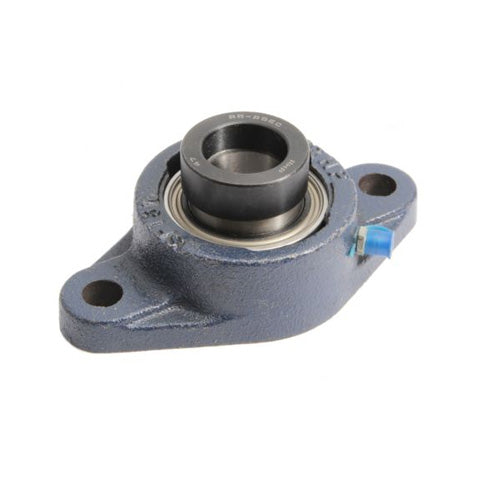

RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert

Name: RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Brand: RHP
SKU: SFT45DEC-RHP
Price: 114.36 USD
Availability: InStock

$114.36 ex VAT

Sale Sold out

In stock

Price Break

10+ $76.60

20+ $72.30

30+ $71.44

40+ $70.58

50+ $69.72

75+ $68.86

100+ $64.55

200+ $63.69

250+ $62.83

500+ $61.97

1000+ $60.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 45mm
Style:: SFT
Bolt Hole Centres:: 148.5mm

Technical

Bore	45mm
L	111.1mm
H	179.4mm
J	148.5mm
G	16mm
A	35.3mm
A3	58.9mm
A4	14.3mm
B3	56.34mm
s2	21.46mm
d2	63.5mm
Dynamic load Cr	32500 N
Static load Cor	20500 N
Rec max speed	3700 rpm
Weight	2.2 kg
Insert	<a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a>
Casting group	7
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
