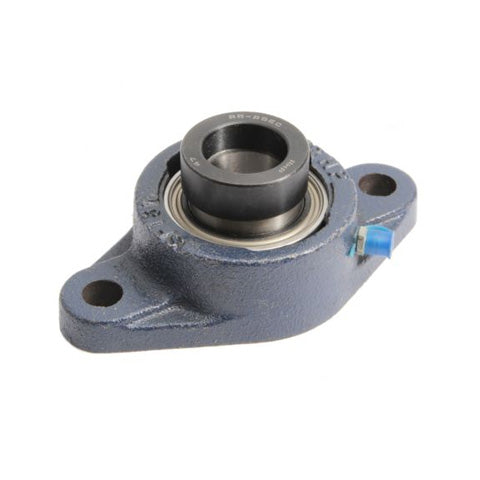

• RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
1 1

SKU: SFT45EC-RHP

RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert

RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
$100.42 ex VAT
$100.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.27
20+ $63.49
30+ $62.73
40+ $61.98
50+ $61.22
75+ $60.46
100+ $56.69
200+ $55.93
250+ $55.17
500+ $54.42
1000+ $52.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
SFT
Bolt Hole Centres:
148.5mm
Technical
Bore 45mm
L 111.1mm
H 179.4mm
J 148.5mm
G 16mm
A 35.3mm
A2 56.62mm
A4 14.3mm
B2 43.64mm
s1 11.05mm
d2 63.5mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
