SKU: SFT50-RHP

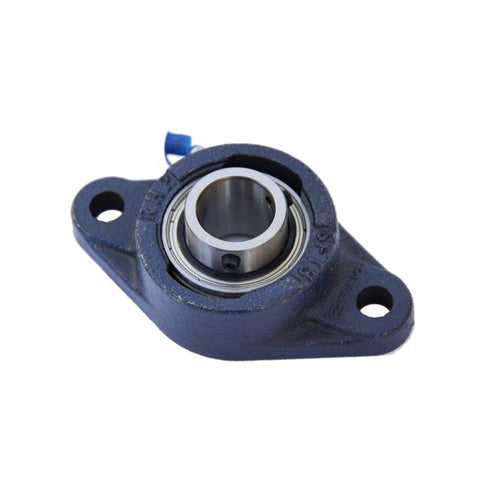

RHP SFT50 Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert

Name: RHP SFT50 Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Brand: RHP
SKU: SFT50-RHP
Price: 103.65 USD
Availability: InStock

$103.65 ex VAT

Sale Sold out

In stock

Price Break

10+ $69.43

20+ $65.53

30+ $64.75

40+ $63.97

50+ $63.19

75+ $62.41

100+ $58.51

200+ $57.73

250+ $56.95

500+ $56.17

1000+ $54.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 50mm
Style:: SFT
Bolt Hole Centres:: 157mm

Technical

Bore	50mm
L	115.9mm
H	188.9mm
J	157mm
G	16mm
A	39.7mm
A1	60.53mm
A4	14.3mm
B	51.59mm
s	19.1mm
d1	62.2mm
Dynamic load Cr	35000 N
Static load Cor	23200 N
Rec max speed	3400 rpm
Weight	2.5 kg
Insert	<a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group	8
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
