SKU: SFT50EC-RHP

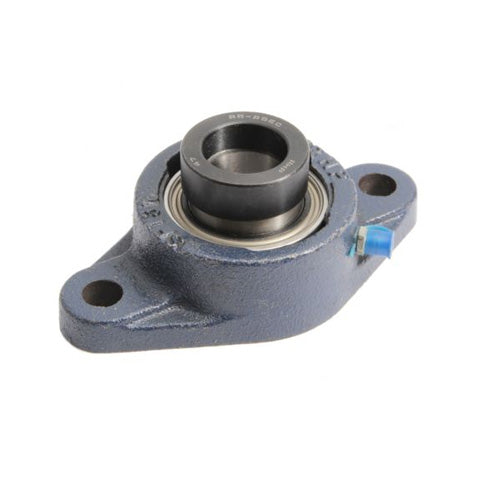

RHP SFT50EC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert

Name: RHP SFT50EC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Brand: RHP
SKU: SFT50EC-RHP
Price: 112.22 USD
Availability: InStock

$112.22 ex VAT

Sale Sold out

In stock

Price Break

10+ $75.17

20+ $70.94

30+ $70.10

40+ $69.25

50+ $68.41

75+ $67.56

100+ $63.34

200+ $62.50

250+ $61.65

500+ $60.81

1000+ $59.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 50mm
Style:: SFT
Bolt Hole Centres:: 157mm

Technical

Bore	50mm
L	115.9mm
H	188.9mm
J	157mm
G	16mm
A	39.7mm
A2	60.6mm
A4	14.3mm
B2	43.64mm
s1	11.05mm
d2	69.85mm
Dynamic load Cr	35000 N
Static load Cor	23200 N
Rec max speed	3400 rpm
Weight	2.5 kg
Insert	<a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a>
Casting group	8
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
