SKU: SFT55DEC-RHP

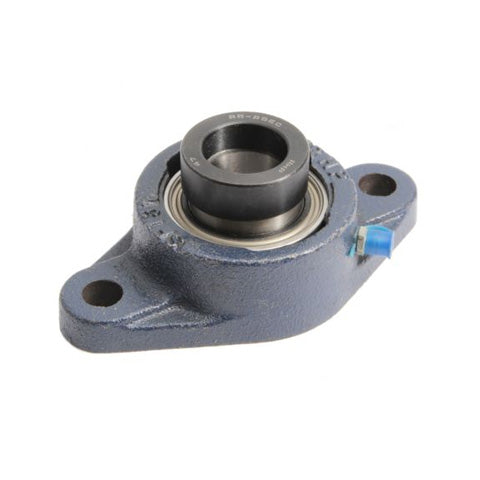

RHP SFT55DEC Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert

Name: RHP SFT55DEC Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
Brand: RHP
SKU: SFT55DEC-RHP
Price: 168.47 USD
Availability: InStock

$168.47 ex VAT

Sale Sold out

In stock

Price Break

10+ $112.84

20+ $106.50

30+ $105.23

40+ $103.97

50+ $102.70

75+ $101.43

100+ $95.09

200+ $93.82

250+ $92.55

500+ $91.29

1000+ $88.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 55mm
Style:: SFT
Bolt Hole Centres:: 184mm

Technical

Bore	55mm
L	127mm
H	215.9mm
J	184mm
G	16mm
A	43.7mm
A3	74.57mm
A4	17.5mm
B3	71.44mm
s2	27.82mm
d2	76.2mm
Dynamic load Cr	43500 N
Static load Cor	29200 N
Rec max speed	3100 rpm
Weight	3.5 kg
Insert	<a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a>
Casting group	9
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
