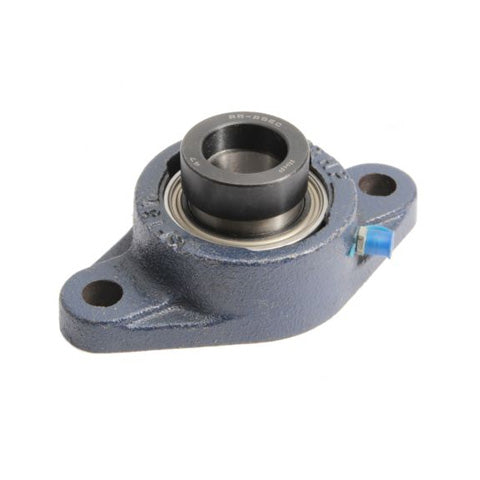

• RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
1 1

SKU: SFT60DEC-RHP

RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert

RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
$211.71 ex VAT
$211.71 ex VAT
Sale Sold out

In stock

Price Break
10+ $141.82
20+ $133.85
30+ $132.26
40+ $130.66
50+ $129.07
75+ $127.48
100+ $119.51
200+ $117.91
250+ $116.32
500+ $114.73
1000+ $111.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Style:
SFT
Bolt Hole Centres:
202mm
Technical
Bore 60mm
L 138.1mm
H 235mm
J 202mm
G 16mm
A 47.6mm
A3 80.77mm
A4 17.5mm
B3 77.82mm
s2 31.02mm
d2 84.12mm
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 4.3 kg
Insert <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
