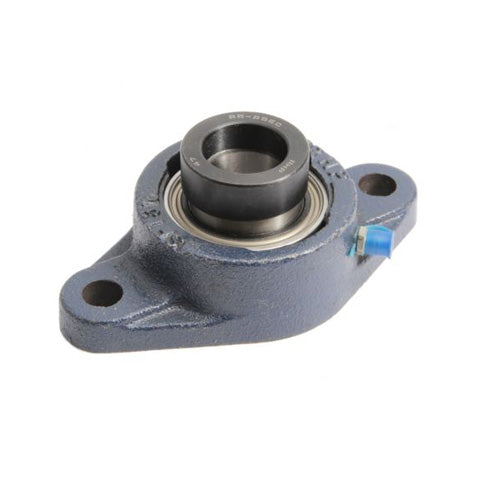

• RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert
1 1

SKU: SFT7/8EC-RHP

RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert

RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert
$56.16 ex VAT
$56.16 ex VAT
Sale Sold out

In stock

Price Break
10+ $37.62
20+ $35.51
30+ $35.09
40+ $34.66
50+ $34.24
75+ $33.82
100+ $31.70
200+ $31.28
250+ $30.86
500+ $30.44
1000+ $29.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
SFT
Bolt Hole Centres:
99.01mm = 3.898 inch
Technical
Bore 7/8 inch
L 2.689 inch
H 4.874 inch
J 3.898 inch
G 0.4375 inch
A 1.126 inch
A2 1.67 inch
A4 0.437 inch
B2 1.217 inch
s1 0.298 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1225-7/8ECG+insonly">1225-7/8ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
