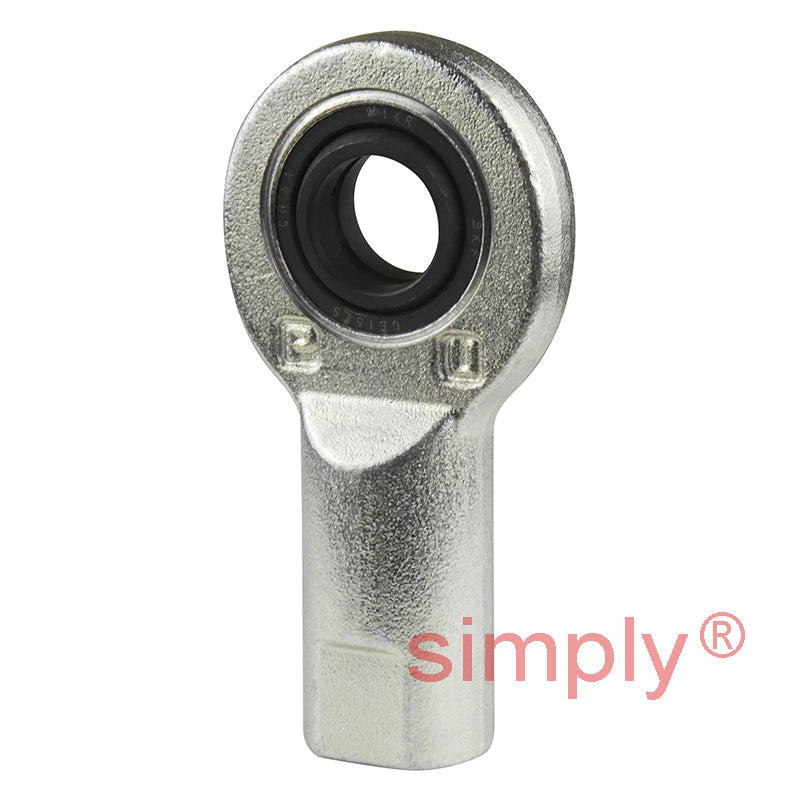

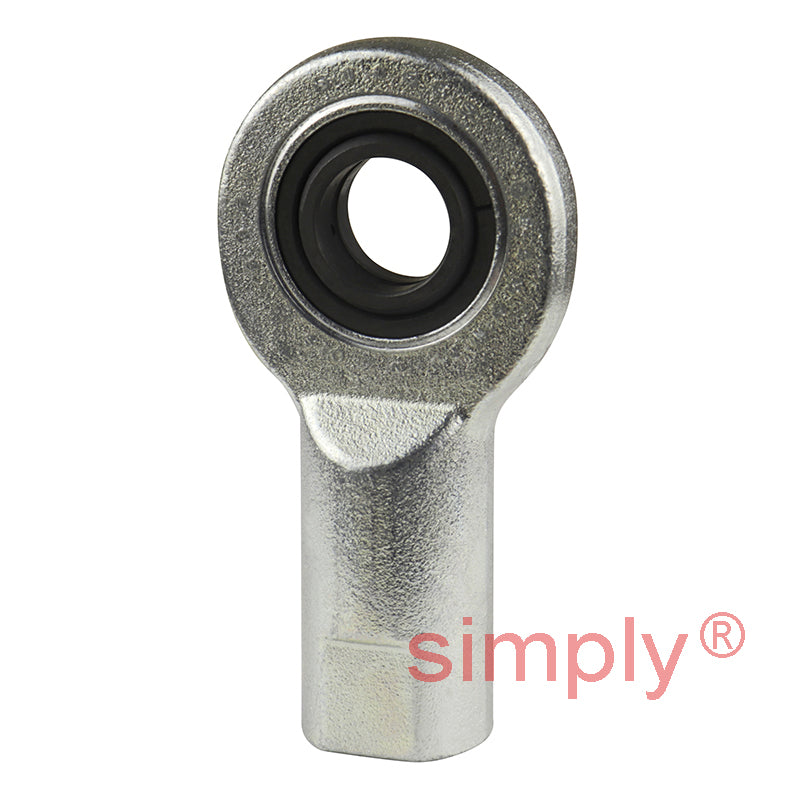

SKF SI15ES Right Hand Steel / Steel Plain Female Rod End M14 Thread
SKF SI15ES Right Hand Steel / Steel Plain Female Rod End M14 Thread
Regular price
$53.83
ex VAT
Regular price
Sale price
$53.83
ex VAT
Equivalent to: SIA15ES GIR15ES FI15D GIR15DO
In stock
Price Break
10+
$36.05
19+
$34.03
29+
$33.62
39+
$33.22
49+
$32.81
74+
$32.41
99+
$30.38
199+
$29.98
249+
$29.57
499+
$29.17
999+
$28.36
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

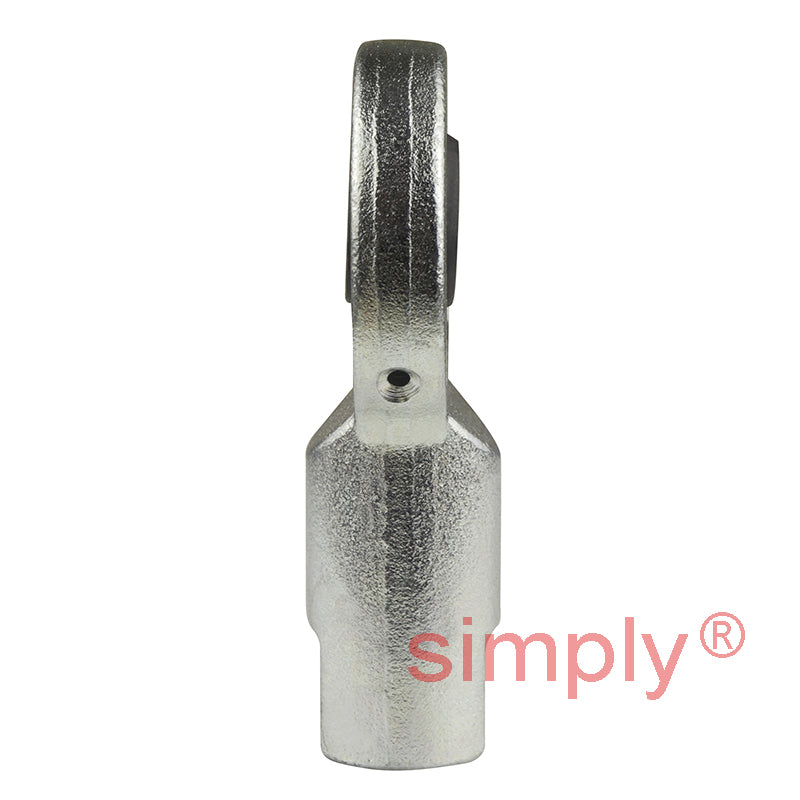

SKF SI..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is a dedicated lubrication point on models from 15 to 20mm provided in the form of a 2.5mm dia lubrication hole in the rod end head, models from 25 to 80mm are provided with a grease nipple, this aligns with an annular groove in the outer raceways and the lubricant passes through small holes onto the mating surfaces, there is also an annular groove on the inside of the ball so lubricant can also be fed through the spindle on which it is mounted if required. These are metric sized female rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 15mm
Technical
Technical
| d | 15mm |
|---|---|
| d2 max | 41mm |
| G | M14 |
| B | 12mm |
| C1 max | 10.5mm |
| h | 61mm |
| a | 8deg |
| Dynamic load C | 17 kN |
| Static load Co | 37.5 kN |
| Weight | 0.18 kg |
| dk | 22mm |
| d4 | 22mm |
| l3 min | 21mm |
| l4 max | 83mm |
| l5 | 14mm |
| l7 min | 19mm |
| r1 min | 0.3mm |
| w h14 | 19mm |
