SKU: SI20C-CDX

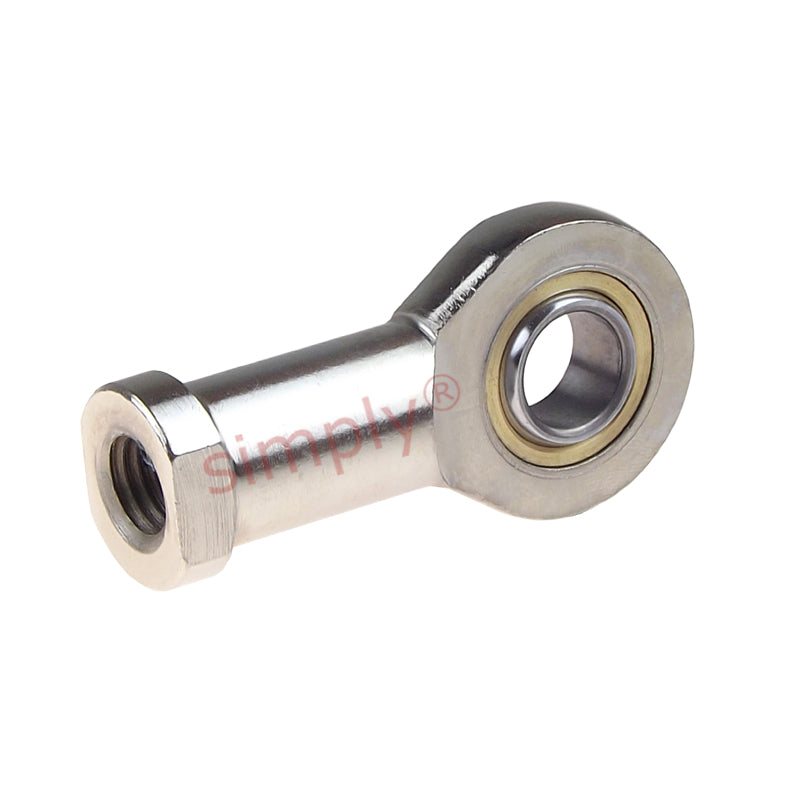

Codex SI20C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread

Name: Codex SI20C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
Brand: Codex
SKU: SI20C-CDX
Price: 30.60 USD
Availability: InStock

$30.60 ex VAT

Sale Sold out

Equivalent to: GIR20UK FI20U

In stock

Price Break

10+ $20.50

19+ $19.35

29+ $19.12

39+ $18.89

49+ $18.66

74+ $18.43

99+ $17.28

199+ $17.04

249+ $16.81

499+ $16.58

999+ $16.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 20mm
Material:: PTFE Sintered Bronze Lined

Technical

d	20mm
d2 max	54mm
G	M20x1.5
B	16mm
C1 max	13.5mm
h1	77mm
Max misalignment angle	9 degrees
Dynamic load	31.5 kN
Static load	57 kN
dk	29mm
d4	28mm
l3 min	30mm
l4 max	106mm
l5	16mm
l7 min	24mm
r1 min	0.3mm
w h14	24mm
Weight	0.35 kg
