SKU: SI25ES-CDX

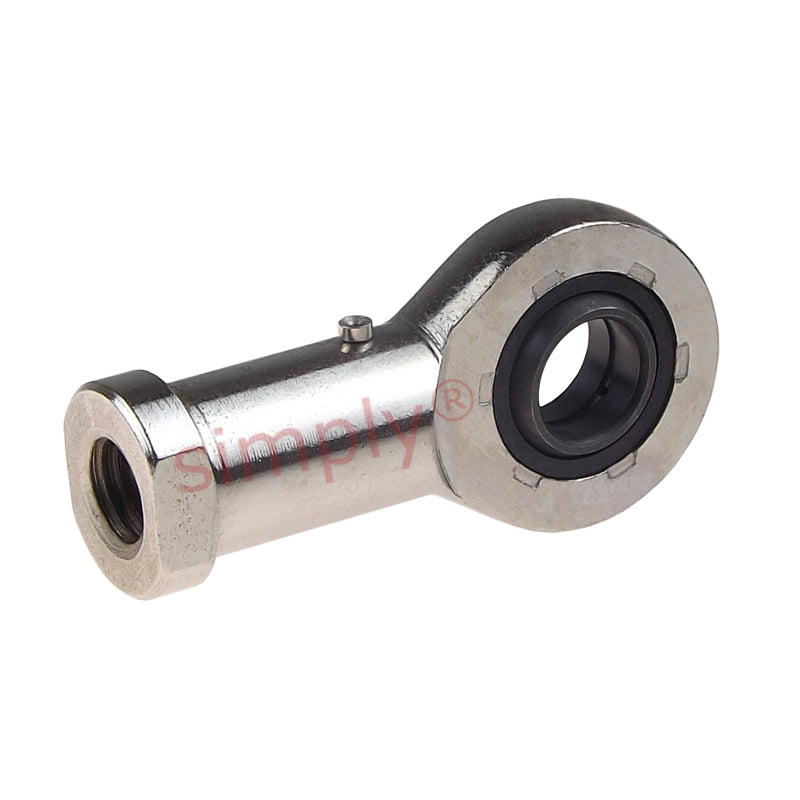

Codex SI25ES Right Hand Steel / Steel Plain Female Rod End M24x2 Thread - Allow 2-3 Days

Name: Codex SI25ES Right Hand Steel / Steel Plain Female Rod End M24x2 Thread - Allow 2-3 Days
Brand: Codex
SKU: SI25ES-CDX
Price: 17.63 USD
Availability: InStock

$17.63 ex VAT

Sale Sold out

Equivalent to: FI25D GIR25DO SIA25ES GIR25ES

In stock

Price Break

10+ $13.14

19+ $12.61

29+ $12.34

39+ $11.94

49+ $11.68

74+ $11.01

99+ $9.29

199+ $0.00

249+ $0.00

499+ $0.00

999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SI..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is a dedicated lubrication point on models from 15 to 20mm provided in the form of a 2.5mm dia lubrication hole in the rod end head, models from 25 to 80mm are provided with a grease nipple, this aligns with an annular groove in the outer raceways and the lubricant passes through small holes onto the mating surfaces, there is also an annular groove on the inside of the ball so lubricant can also be fed through the spindle on which it is mounted if required. These are metric sized female rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C.
Application: Suitable for heavy static or alternating loads, shock loads.
Benefits: Re-lubricate-able, cleanable.

Brand / Quality:: Codex - Good Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 25mm

Technical

d	25mm
d2	65mm
G	M24x2
B	20mm
C1 max	18mm
h1	94mm
Max misalignment angle	7 degrees
Dynamic load	48 kN
Static load	90 kN
dk	35.5mm
d4	35mm
l3 min	36mm
l4 max	128mm
l5	18mm
l7	30mm
r1 min	0.6mm
w	30mm
Weight	0.65 kg
