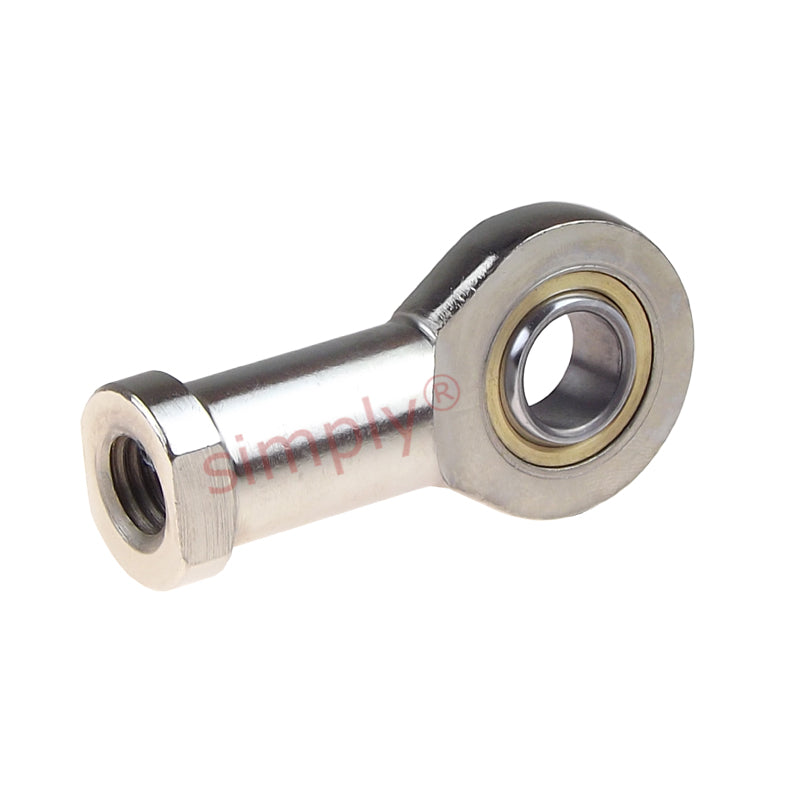

• Codex SI8C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
  • Codex
1 2

SKU: SI8C-CDX

Codex SI8C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread

Codex SI8C Right Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
$8.46 ex VAT
$8.46 ex VAT
Sale Sold out

Equivalent to: GIR8UK FI8U

Low stock

Price Break
10+ $5.67
19+ $5.35
29+ $5.29
39+ $5.22
49+ $5.16
74+ $5.10
99+ $4.78
199+ $4.71
249+ $4.65
499+ $4.59
999+ $4.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M8
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
8mm
Material:
PTFE Sintered Bronze Lined
Technical
d 8mm
d2 max 25mm
G M8
B 8mm
C1 max 6.5mm
h1 36mm
Max misalignment angle 15 degrees
Dynamic load 5.8 kN
Static load 12.9 kN
dk 13mm
d4 13mm
l3 min 15mm
l4 max 50mm
l5 9mm
l7 min 11mm
r1 min 0.3mm
w h14 11mm
Weight 0.036 kg
