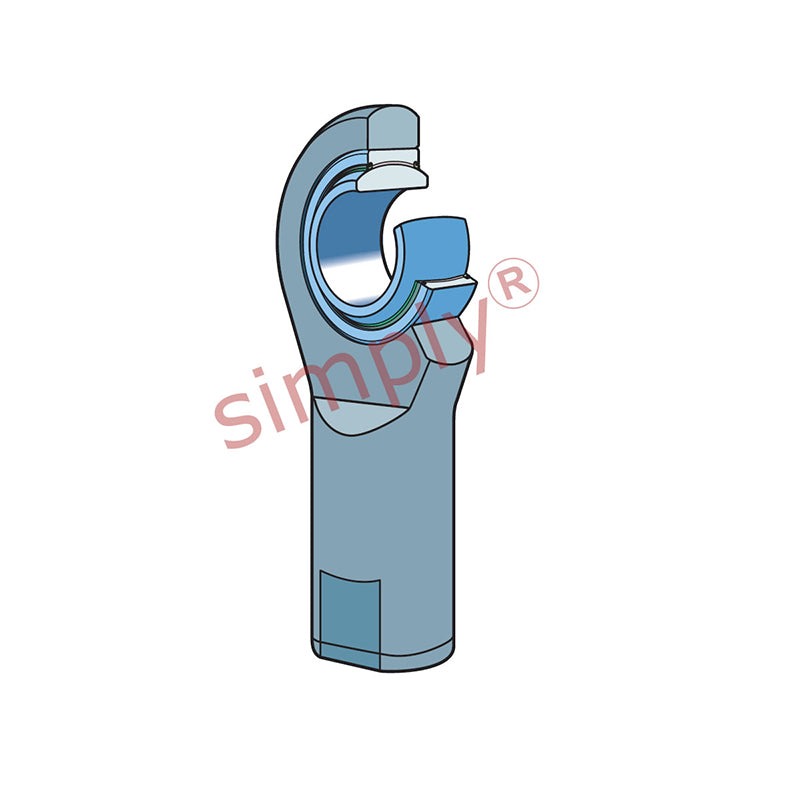

• SKF SIA50TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M45x3 Thread
1 1

SKU: SIA50TXE-2LS-SKF

SKF SIA50TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M45x3 Thread

SKF SIA50TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M45x3 Thread
$550.80 ex VAT
$550.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $368.94
19+ $348.21
29+ $344.07
39+ $339.92
49+ $335.78
74+ $331.63
99+ $310.90
199+ $306.76
249+ $302.61
499+ $298.47
999+ $290.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Thread Size:
M45x3
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
50mm
Material:
PTFE Fabric Lined
Technical
d 50mm
d2 max 114mm
G 6H M45x3
B 35mm
C1 max 31mm
h1 160mm
a 6deg
Dynamic load C 440 kN
Static load Co 270 kN
Weight 4.1 kg
dk 66mm
d4 70mm
l3 min 68mm
l4 max 246mm
l5 30mm
l7 min 58mm
r1 min 0.6mm
w h14 60mm
