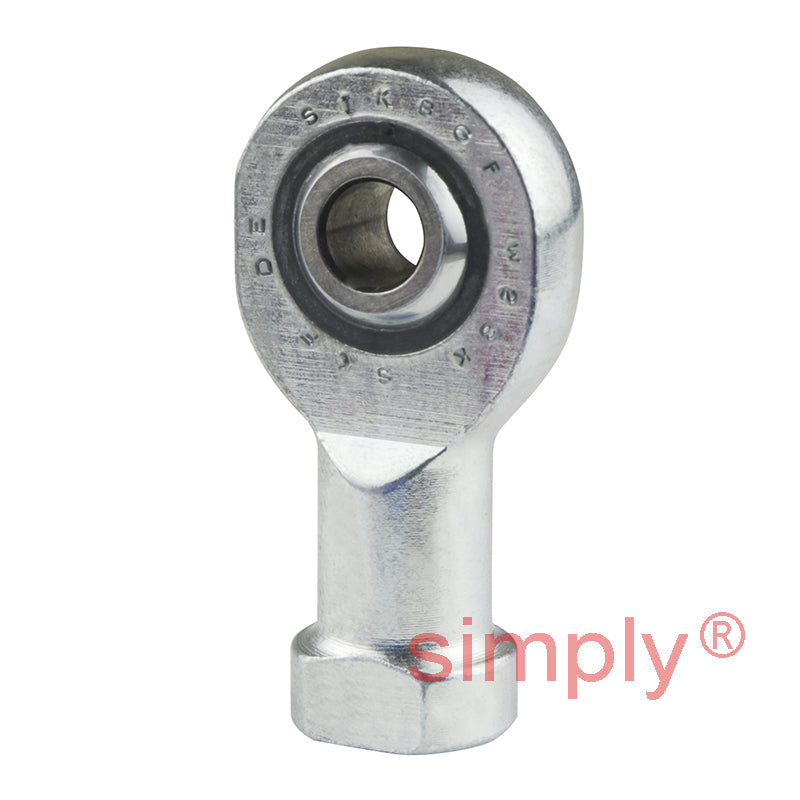

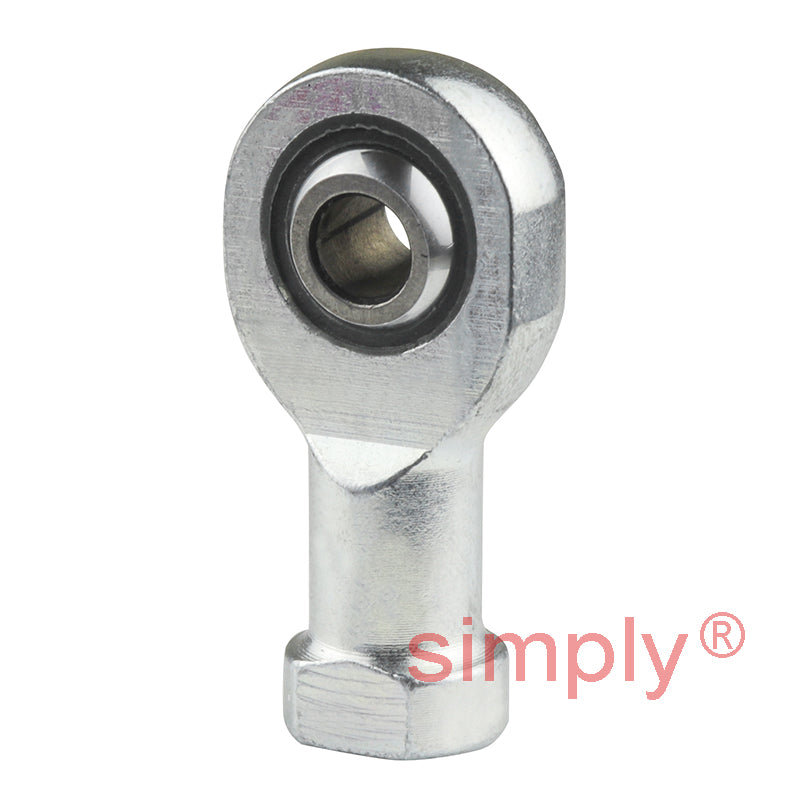

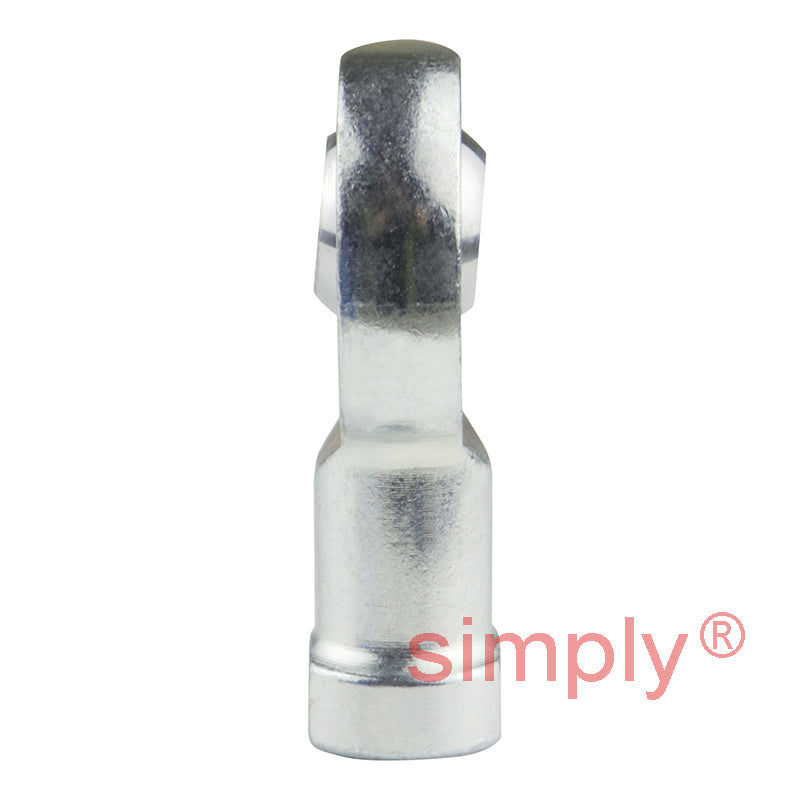

SKF SIKB6F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M6 Thread
SKF SIKB6F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M6 Thread
Regular price
$36.67
ex VAT
Regular price
Sale price
$36.67
ex VAT
Equivalent to: FS-M06
In stock
Price Break
10+
$24.56
19+
$23.18
29+
$22.91
39+
$22.63
49+
$22.36
74+
$22.08
99+
$20.70
199+
$20.42
249+
$20.15
499+
$19.87
999+
$19.32
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 6mm |
|---|---|
| d2 max | 21mm |
| G | M6 |
| B | 9mm |
| C1 max | 6.75mm |
| h | 30mm |
| a | 13deg |
| Dynamic load C | 4.25 kN |
| Static load Co | 6.8 kN |
| Weight | 0.028 kg |
| dk | 12.7mm |
| d3 | 10mm |
| d4 max | 14mm |
| l3 min | 9mm |
| l4 max | 41mm |
| l5 | 5mm |
| l7 min | 10mm |
| r1 min | 0.3mm |
| w h14 | 11mm |
