SKU: SIL10C-CDX

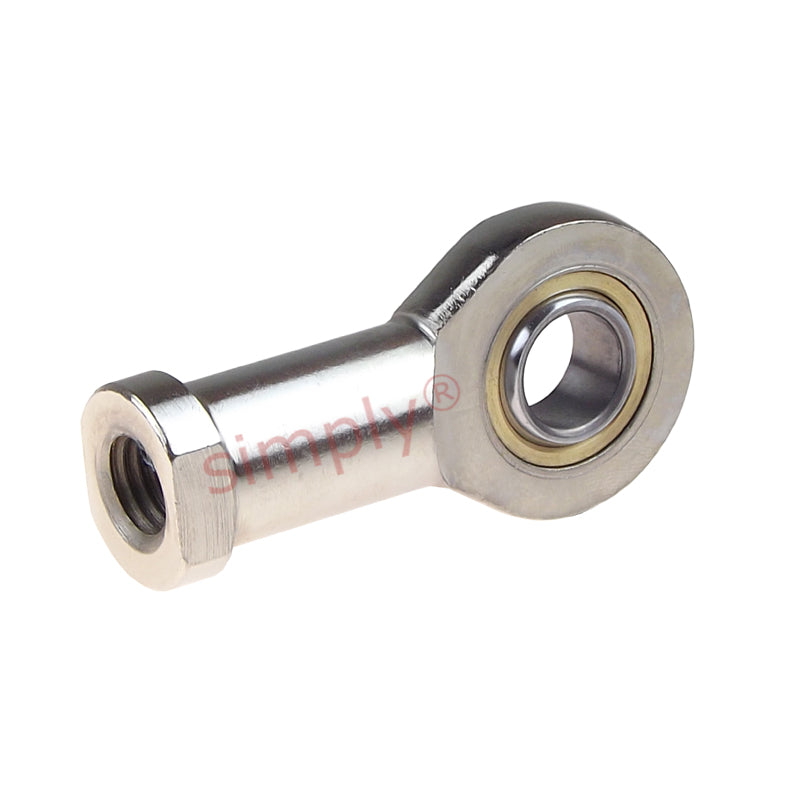

Codex SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
- Regular price
- $38.59 ex VAT
- Sale price
- $38.59
- Regular price
-
In stock
Quantity Price Breaks
10
$34.35
19
$32.42
29
$32.03
39
$31.64
49
$31.26
74
$30.87
99
$28.94
199
$28.56
249
$28.17
499
$27.78
999
$27.01
SKU:
SIL10C-CDX
Codex SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
- Regular price
- $38.59 ex VAT
- Sale price
- $38.59
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Technical
| d | = | 10mm |
| d2 max | = | 30mm |
| G | = | M10 |
| B | = | 9mm |
| C1 max | = | 7.5mm |
| h1 | = | 43mm |
| Max misalignment angle | = | 12 degrees |
| Dynamic load | = | 8.65 kN |
| Static load | = | 19 kN |
| dk | = | 16mm |
| d4 | = | 16mm |
| l3 min | = | 15mm |
| l4 max | = | 60mm |
| l5 | = | 11mm |
| l7 min | = | 13mm |
| r1 min | = | 0.3mm |
| w h14 | = | 14mm |
| Weight | = | 0.065 kg |
