SKU: SIL10C-SKF

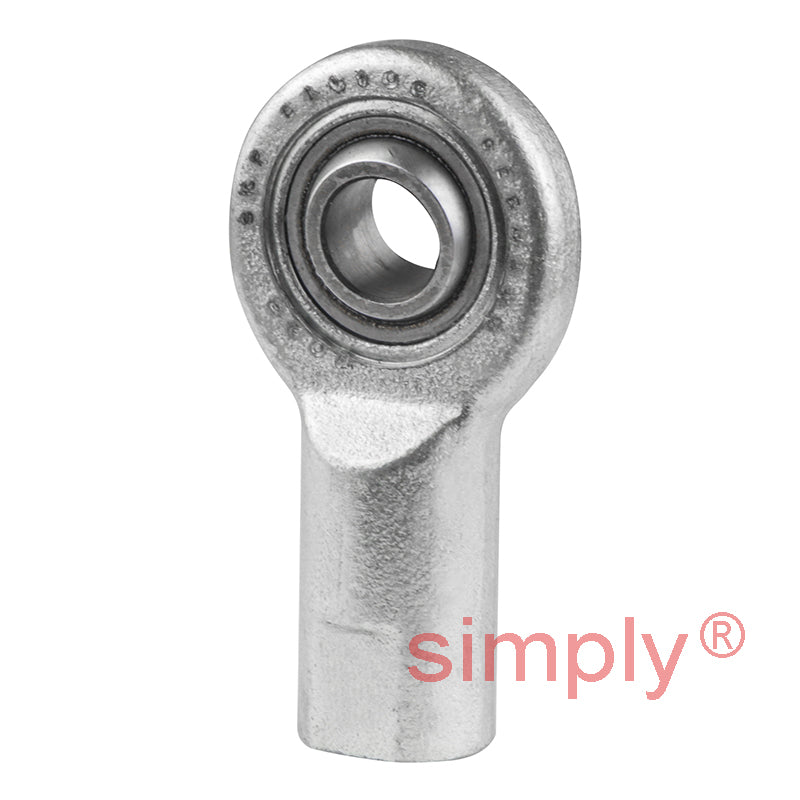

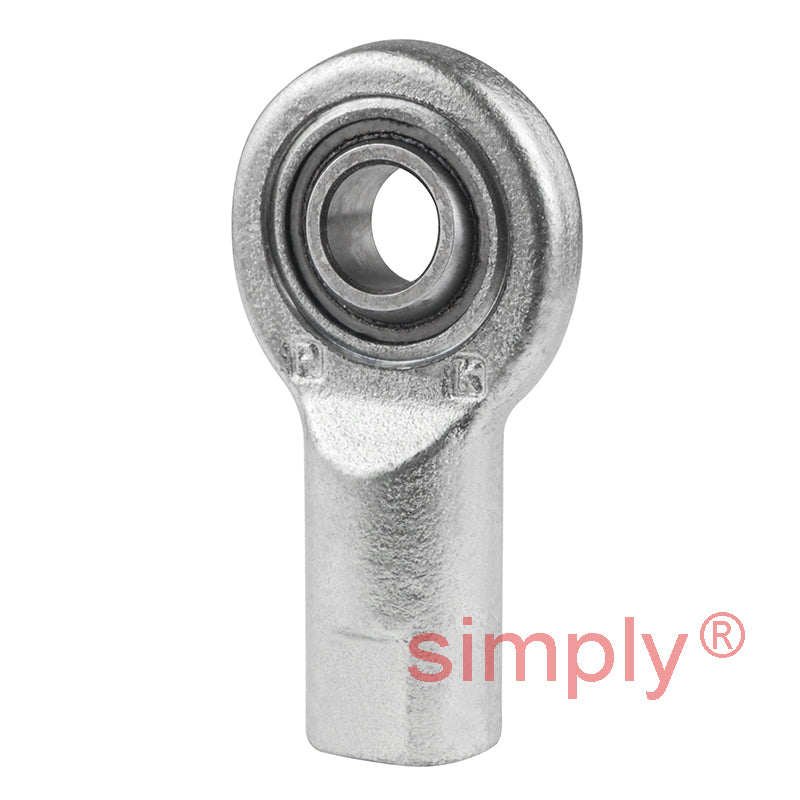

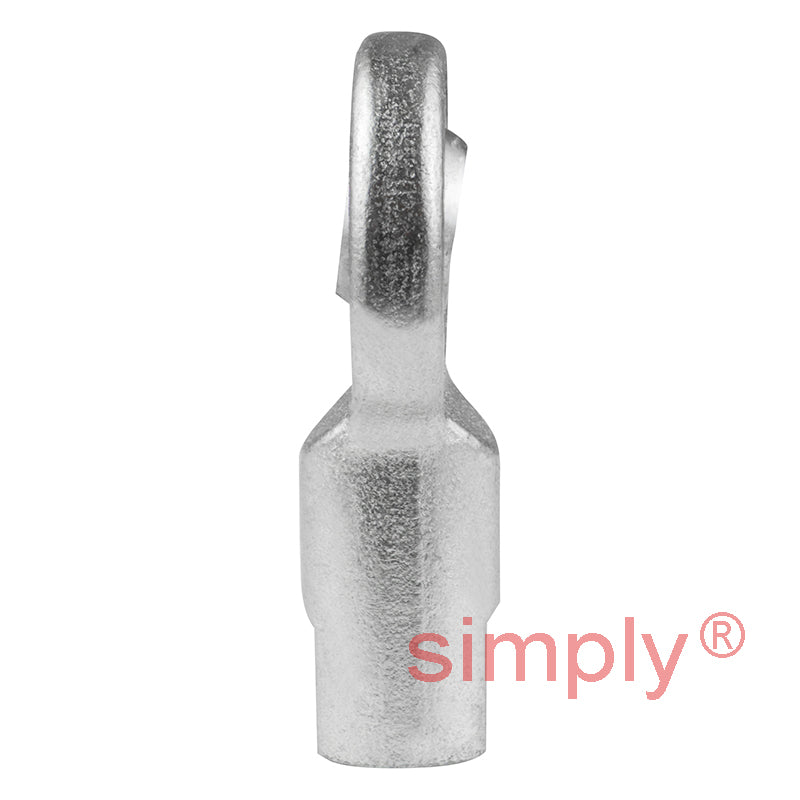

SKF SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread

Name: SKF SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
Brand: SKF
SKU: SIL10C-SKF
Price: 81.13 USD
Availability: InStock

$81.13 ex VAT

Sale Sold out

Equivalent to: GIL10UK

In stock

Price Break

10+ $54.35

19+ $51.29

29+ $50.68

39+ $50.07

49+ $49.46

74+ $48.85

99+ $45.80

199+ $45.19

249+ $44.58

499+ $43.97

999+ $42.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Brand / Quality:: SKF - High Quality
Thread Size:: M10
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 10mm
Material:: PTFE Sintered Bronze Lined

Technical

d	10mm
d2 max	30mm
G 6H	M10
B	9mm
C1 max	7.5mm
h1	43mm
a	12deg
Dynamic load C	8.65 kN
Static load Co	19 kN
Weight	0.065 kg
dk	16mm
d4	16mm
l3 min	15mm
l4 max	60mm
l5	11mm
l7 min	13mm
r1 min	0.3mm
w h14	14mm
