SKU: SIL12C-CDX

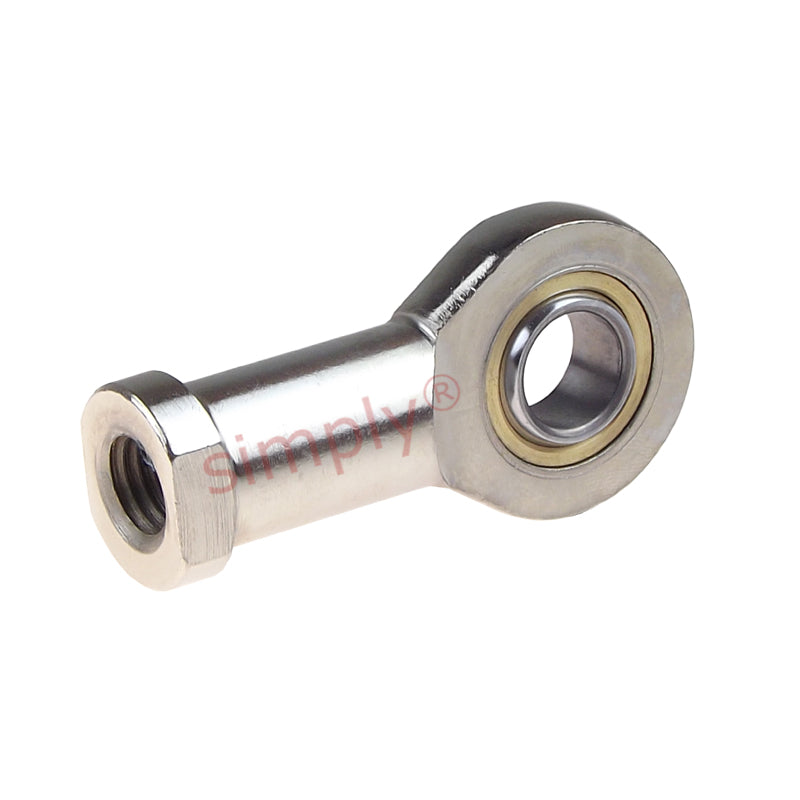

Codex SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
- Regular price
- $30.16 ex VAT
- Sale price
- $30.16
- Regular price
-
In stock
Quantity Price Breaks
10
$26.84
19
$25.33
29
$25.03
39
$24.73
49
$24.43
74
$24.13
99
$22.62
199
$22.32
249
$22.02
499
$21.72
999
$21.11
SKU:
SIL12C-CDX
Codex SIL12C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M12 Thread
- Regular price
- $30.16 ex VAT
- Sale price
- $30.16
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Technical
| d | = | 12mm |
| d2 max | = | 35mm |
| G | = | M12 |
| B | = | 10mm |
| C1 max | = | 8.5mm |
| h1 | = | 50mm |
| Max misalignment angle | = | 10 degrees |
| Dynamic load | = | 11.4 kN |
| Static load | = | 25.5 kN |
| dk | = | 18mm |
| d4 | = | 19mm |
| l3 min | = | 18mm |
| l4 max | = | 69mm |
| l5 | = | 12mm |
| l7 min | = | 17mm |
| r1 min | = | 0.3mm |
| w h14 | = | 17mm |
| Weight | = | 0.11 kg |
