SKU: SIL15C-CDX

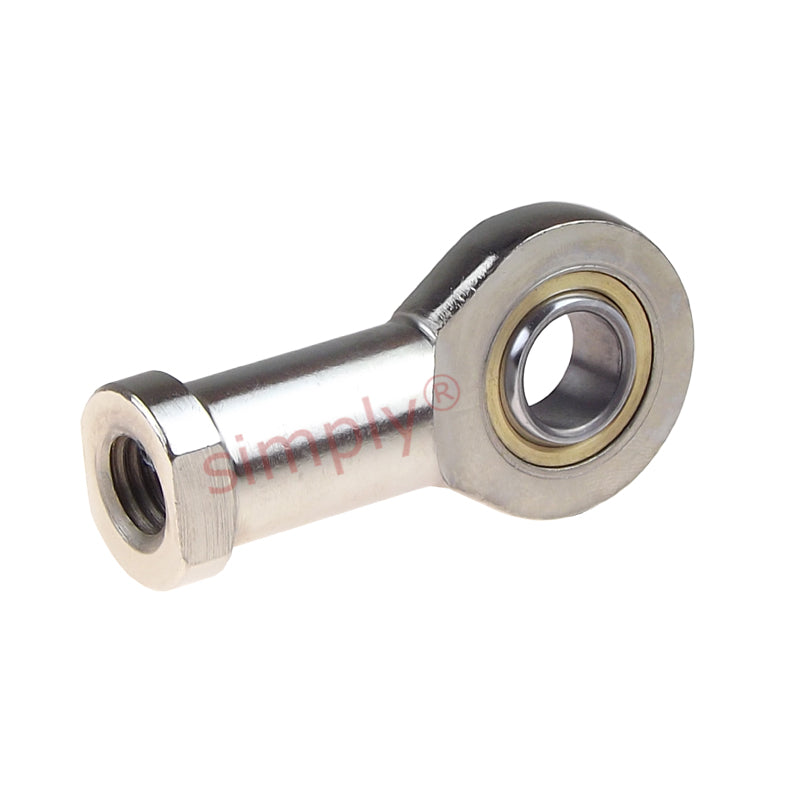

Codex SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
- Regular price
- $32.23 ex VAT
- Sale price
- $32.23
- Regular price
-
In stock
Quantity Price Breaks
10
$28.68
19
$27.07
29
$26.75
39
$26.43
49
$26.11
74
$25.78
99
$24.17
199
$23.85
249
$23.53
499
$23.21
999
$22.56
SKU:
SIL15C-CDX
Codex SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
- Regular price
- $32.23 ex VAT
- Sale price
- $32.23
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Technical
| d | = | 15mm |
| d2 max | = | 41mm |
| G | = | M14 |
| B | = | 12mm |
| C1 max | = | 10.5mm |
| h1 | = | 61mm |
| Max misalignment angle | = | 8 degrees |
| Dynamic load | = | 18 kN |
| Static load | = | 37.5 kN |
| dk | = | 22mm |
| d4 | = | 22mm |
| l3 min | = | 21mm |
| l4 max | = | 83mm |
| l5 | = | 14mm |
| l7 min | = | 19mm |
| r1 min | = | 0.3mm |
| w h14 | = | 19mm |
| Weight | = | 0.18 kg |
