SKU: SIL15C-SKF

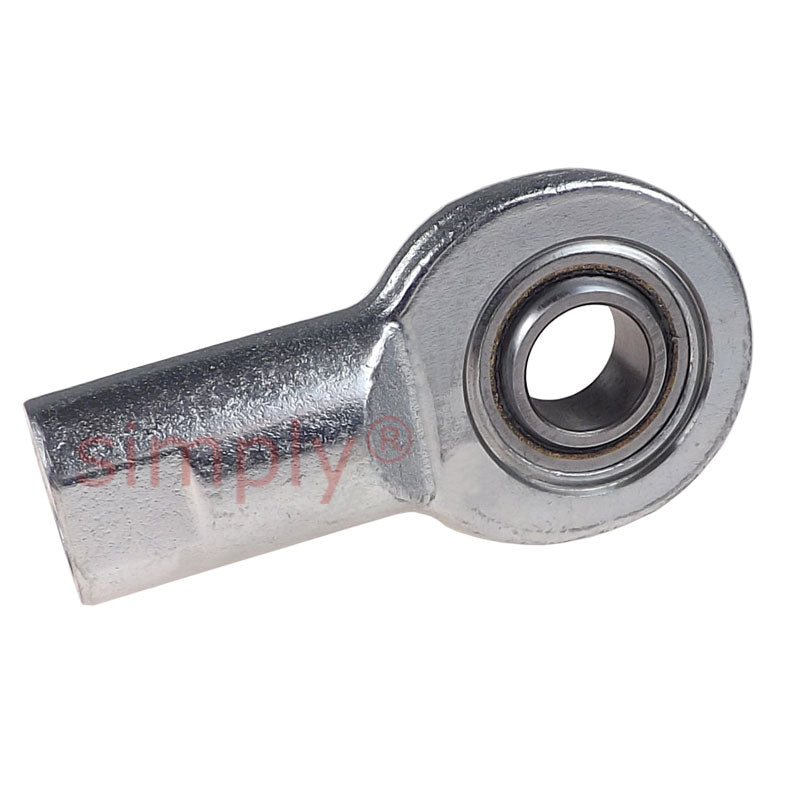

SKF SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
SKF SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
Regular price
$67.75
ex VAT
Regular price
Sale price
$67.75
ex VAT
Equivalent to: GIL15UK
In stock
Price Break
10+
$45.38
19+
$42.83
29+
$42.32
39+
$41.81
49+
$41.30
74+
$40.79
99+
$38.24
199+
$37.73
249+
$37.22
499+
$36.71
999+
$35.69
Quantity
Couldn't load pickup availability
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 15mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 15mm |
|---|---|
| d2 max | 41mm |
| G 6H | M14 |
| B | 12mm |
| C1 max | 10.5mm |
| h1 | 61mm |
| a | 8deg |
| Dynamic load C | 18 kN |
| Static load Co | 37.5 kN |
| Weight | 0.18 kg |
| dk | 22mm |
| d4 | 22mm |
| l3 min | 21mm |
| l4 max | 83mm |
| l5 | 14mm |
| l7 min | 19mm |
| r1 min | 0.3mm |
| w h14 | 19mm |
