SKU: SIL17C-SKF

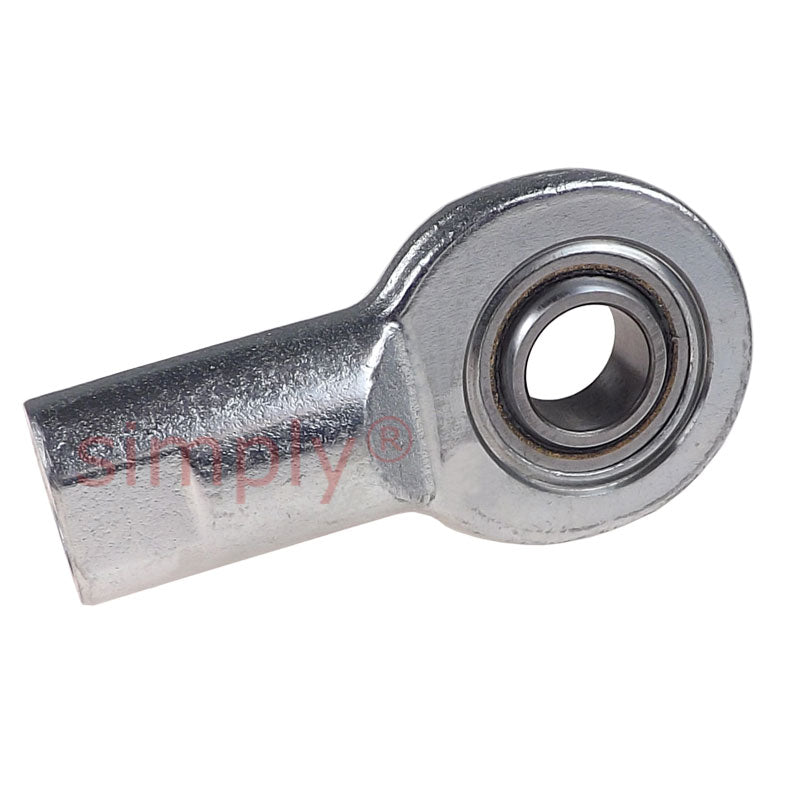

SKF SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread

Name: SKF SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
Brand: SKF
SKU: SIL17C-SKF
Price: 74.87 USD
Availability: InStock

$74.87 ex VAT

Sale Sold out

Equivalent to: GIL17UK

In stock

Price Break

10+ $50.15

19+ $47.33

29+ $46.77

39+ $46.21

49+ $45.64

74+ $45.08

99+ $42.26

199+ $41.70

249+ $41.14

499+ $40.57

999+ $39.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Brand / Quality:: SKF - High Quality
Thread Size:: M16
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 17mm
Material:: PTFE Sintered Bronze Lined

Technical

d	17mm
d2 max	47mm
G 6H	M16
B	14mm
C1 max	11.5mm
h1	67mm
a	10deg
Dynamic load C	22.4 kN
Static load Co	46.5 kN
Weight	0.25 kg
dk	25mm
d4	25mm
l3 min	24mm
l4 max	92mm
l5	15mm
l7 min	22mm
r1 min	0.3mm
w h14	22mm
