SKU: SIL20C-CDX

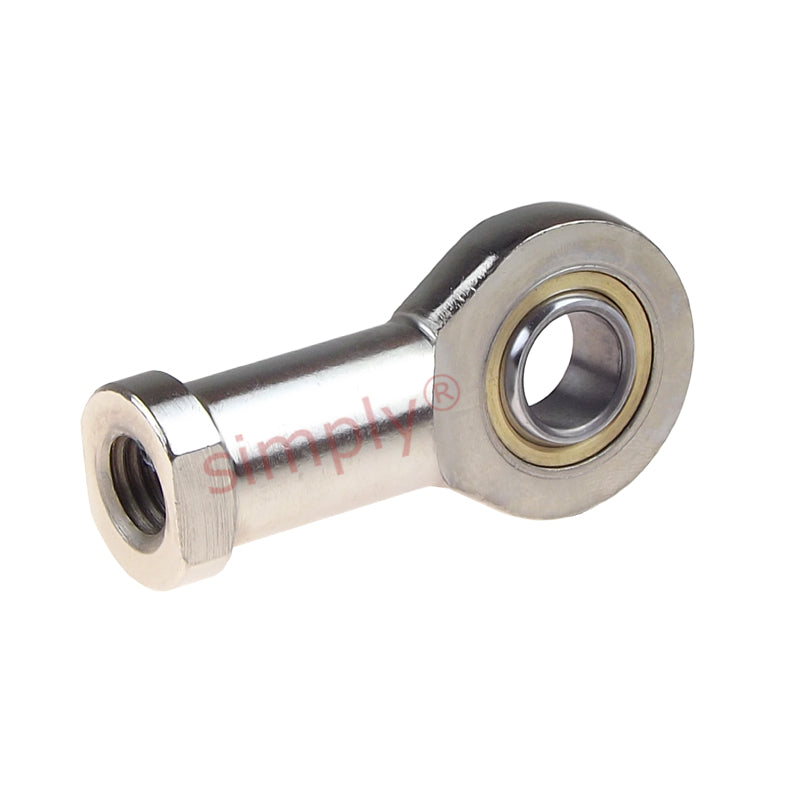

Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread

Name: Codex SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
Brand: Codex
SKU: SIL20C-CDX
Price: 38.51 USD
Availability: InStock

$38.51 ex VAT

Sale Sold out

Equivalent to: GIL20UK

In stock

Price Break

10+ $25.79

19+ $24.34

29+ $24.05

39+ $23.77

49+ $23.48

74+ $23.19

99+ $21.74

199+ $21.45

249+ $21.16

499+ $20.87

999+ $20.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 20mm
Material:: PTFE Sintered Bronze Lined

Technical

d	20mm
d2 max	54mm
G	M20x1.5
B	16mm
C1 max	13.5mm
h1	77mm
Max misalignment angle	9 degrees
Dynamic load	31.5 kN
Static load	57 kN
dk	29mm
d4	28mm
l3 min	30mm
l4 max	106mm
l5	16mm
l7 min	24mm
r1 min	0.3mm
w h14	24mm
Weight	0.35 kg
