SKU: SIL20C-SKF

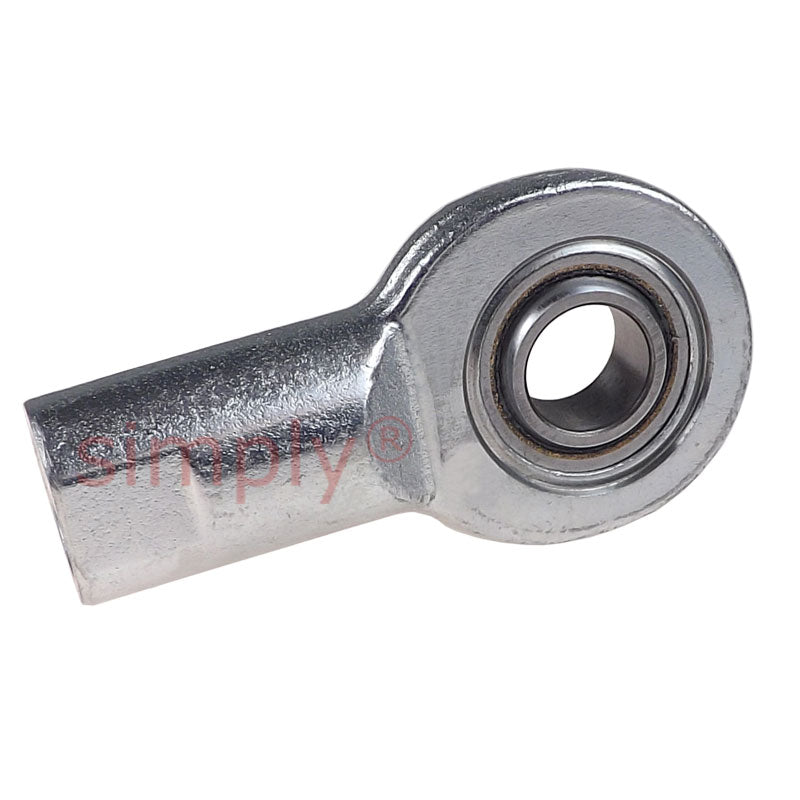

SKF SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread

Name: SKF SIL20C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M20x1.5 Thread
Brand: SKF
SKU: SIL20C-SKF
Price: 81.93 USD
Availability: InStock

$81.93 ex VAT

Sale Sold out

Equivalent to: GIL20UK

In stock

Price Break

10+ $54.88

19+ $51.80

29+ $51.18

39+ $50.56

49+ $49.95

74+ $49.33

99+ $46.25

199+ $45.63

249+ $45.01

499+ $44.40

999+ $43.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Brand / Quality:: SKF - High Quality
Thread Size:: M20x1.5
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 20mm
Material:: PTFE Sintered Bronze Lined

Technical

d	20mm
d2 max	54mm
G 6H	M20x1.5
B	16mm
C1 max	13.5mm
h1	77mm
a	9deg
Dynamic load C	31.5 kN
Static load Co	57 kN
Weight	0.35 kg
dk	29mm
d4	28mm
l3 min	30mm
l4 max	106mm
l5	16mm
l7 min	24mm
r1 min	0.3mm
w h14	24mm
