• Codex SIL20ES Left Hand Steel / Steel Plain Female Rod End M20x1.5 Thread
  • Codex
1 2

SKU: SIL20ES-CDX

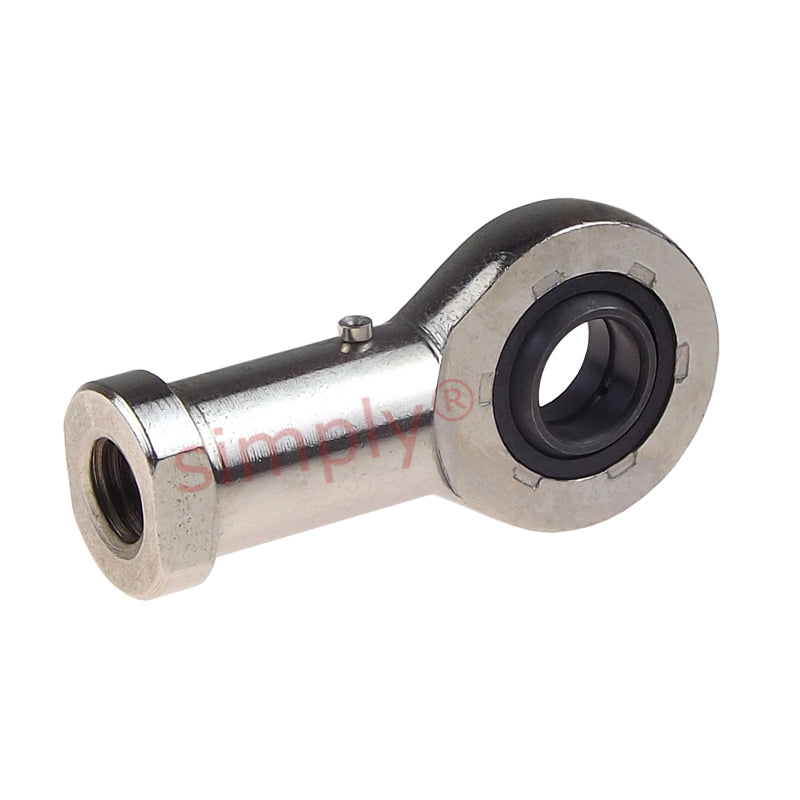

Codex SIL20ES Left Hand Steel / Steel Plain Female Rod End M20x1.5 Thread

Codex SIL20ES Left Hand Steel / Steel Plain Female Rod End M20x1.5 Thread
$33.51 ex VAT
$33.51 ex VAT
Sale Sold out

Equivalent to: GIL20DO GIL20ES

In stock

Price Break
10+ $22.45
19+ $21.19
29+ $20.94
39+ $20.68
49+ $20.43
74+ $20.18
99+ $18.92
199+ $18.67
249+ $18.41
499+ $18.16
999+ $17.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M20x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
20mm
Technical
d 20mm
d2 54mm
G M20x1.5
B 16mm
C1 max 13.5mm
h1 77mm
Max misalignment angle 9 degrees
Dynamic load 30 kN
Static load 57 kN
dk 29mm
d4 28mm
l3 min 30mm
l4 max 106mm
l5 16mm
l7 24mm
r1 min 0.3mm
w 24mm
Weight 0.36 kg
