SKU: SIL25C-CDX

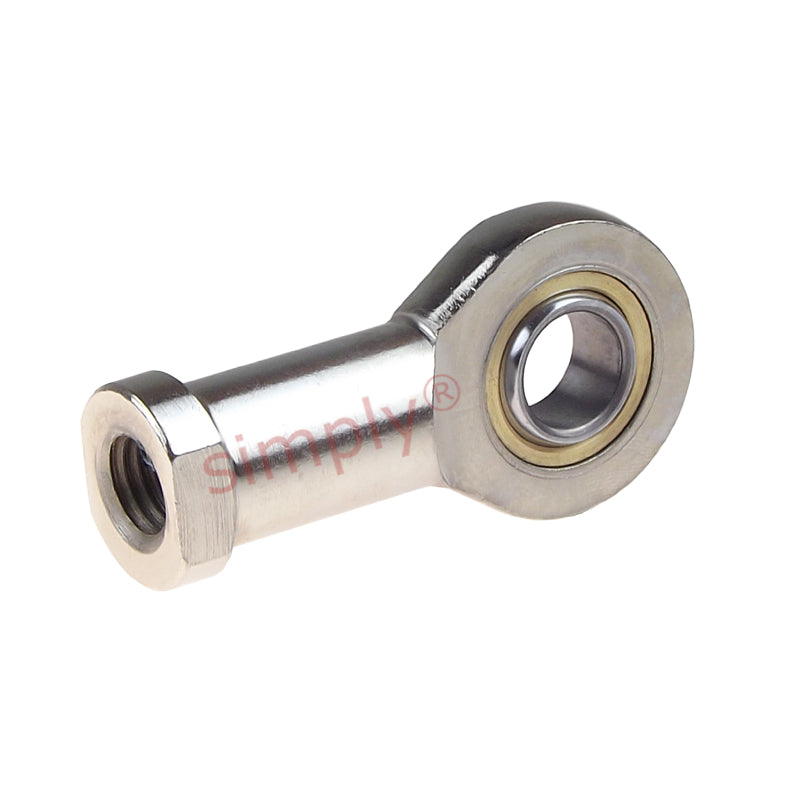

Codex SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread

Name: Codex SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
Brand: Codex
SKU: SIL25C-CDX
Price: 55.11 USD
Availability: InStock

$55.11 ex VAT

Sale Sold out

Equivalent to: GIL25UK

In stock

Price Break

10+ $36.92

19+ $34.84

29+ $34.43

39+ $34.01

49+ $33.60

74+ $33.18

99+ $31.11

199+ $30.70

249+ $30.28

499+ $29.87

999+ $29.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Brand / Quality:: Codex - Good Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 25mm
Material:: PTFE Sintered Bronze Lined

Technical

d	25mm
d2 max	65mm
G	M24x2
B	20mm
C1 max	18mm
h1	94mm
Max misalignment angle	7 degrees
Dynamic load	51 kN
Static load	90 kN
dk	35.5mm
d4	35mm
l3 min	36mm
l4 max	128mm
l5	18mm
l7 min	30mm
r1 min	0.6mm
w h14	30mm
Weight	0.65 kg
