SKU: SIL25C-SKF

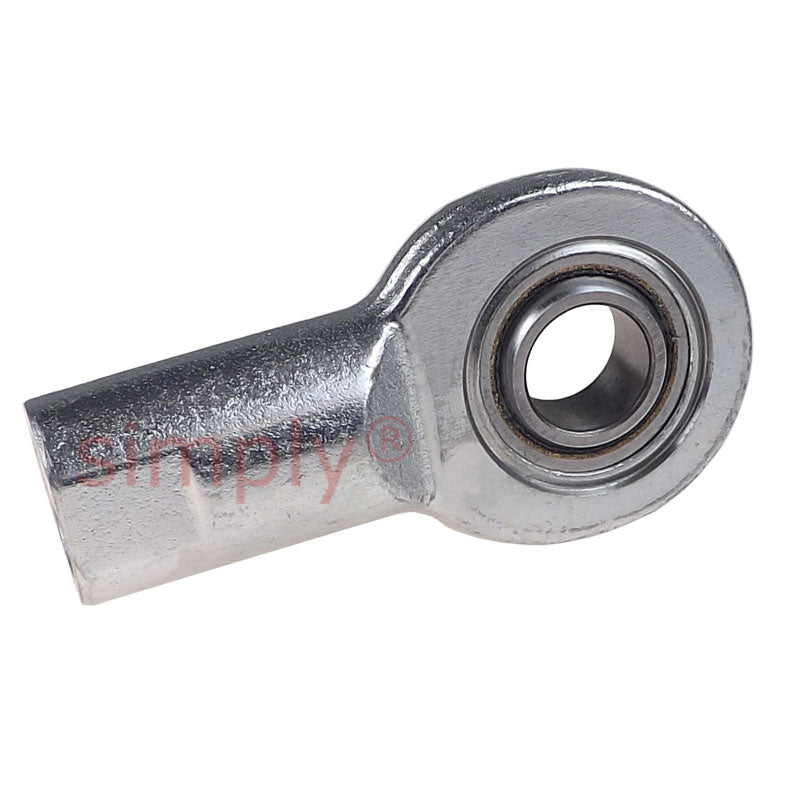

SKF SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread

Name: SKF SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
Brand: SKF
SKU: SIL25C-SKF
Price: 117.27 USD
Availability: InStock

$117.27 ex VAT

Sale Sold out

Equivalent to: GIL25UK

In stock

Price Break

10+ $78.55

19+ $74.13

29+ $73.25

39+ $72.37

49+ $71.49

74+ $70.60

99+ $66.19

199+ $65.31

249+ $64.43

499+ $63.54

999+ $61.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Brand / Quality:: SKF - High Quality
Thread Size:: M24x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 25mm
Material:: PTFE Sintered Bronze Lined

Technical

d	25mm
d2 max	65mm
G 6H	M24x2
B	20mm
C1 max	18mm
h1	94mm
a	7deg
Dynamic load C	51 kN
Static load Co	90 kN
Weight	0.65 kg
dk	35.5mm
d4	35mm
l3 min	36mm
l4 max	128mm
l5	18mm
l7 min	30mm
r1 min	0.6mm
w h14	30mm
