• Codex SIL25ES Left Hand Steel / Steel Plain Female Rod End M24x2 Thread
  • Codex
1 2

SKU: SIL25ES-CDX

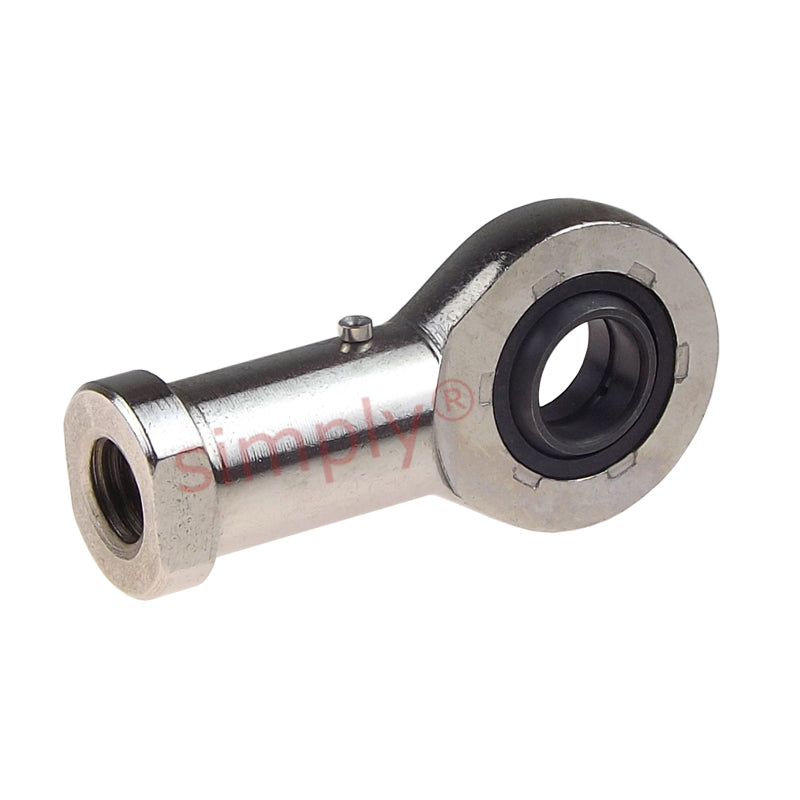

Codex SIL25ES Left Hand Steel / Steel Plain Female Rod End M24x2 Thread

Codex SIL25ES Left Hand Steel / Steel Plain Female Rod End M24x2 Thread
$47.51 ex VAT
$47.51 ex VAT
Sale Sold out

Equivalent to: GIL25DO GIL25ES

In stock

Price Break
10+ $31.83
19+ $30.04
29+ $29.68
39+ $29.32
49+ $28.97
74+ $28.61
99+ $26.82
199+ $26.46
249+ $26.11
499+ $25.75
999+ $25.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M24x2
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
25mm

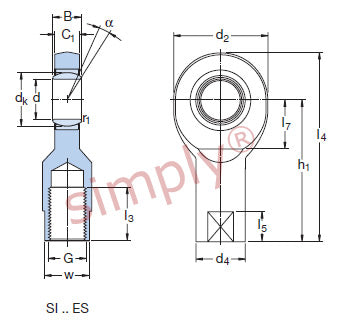

Technical
d 25mm
d2 65mm
G M24x2
B 20mm
C1 max 18mm
h1 94mm
Max misalignment angle 7 degrees
Dynamic load 48 kN
Static load 90 kN
dk 35.5mm
d4 35mm
l3 min 36mm
l4 max 128mm
l5 18mm
l7 30mm
r1 min 0.6mm
w 30mm
Weight 0.65 kg
