SKU: SIL40TXE-2LS-SKF

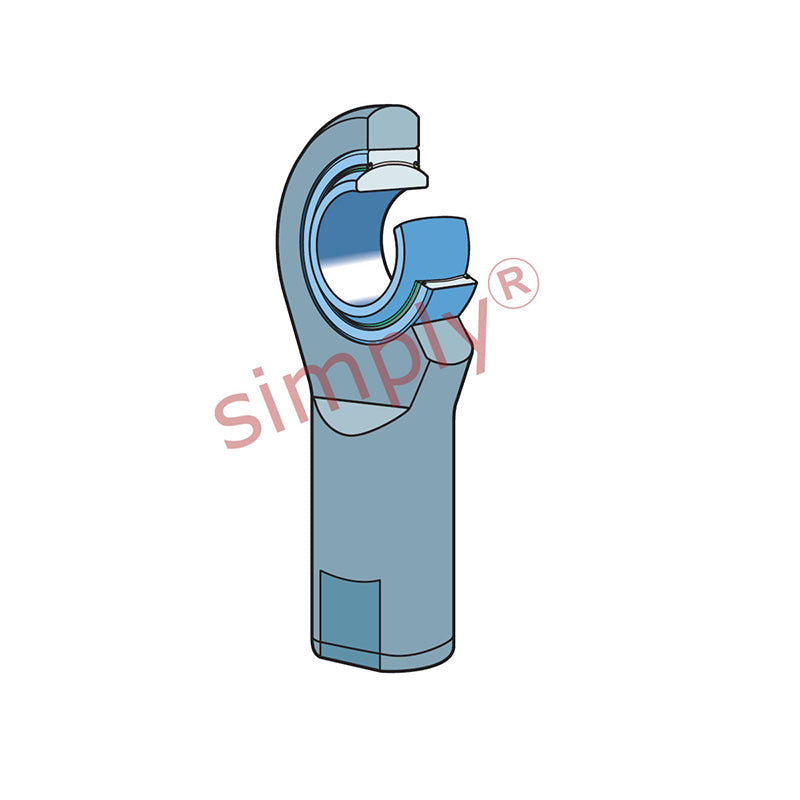

SKF SIL40TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M42x3 Thread
SKF SIL40TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M42x3 Thread
Regular price
$367.34
ex VAT
Regular price
Sale price
$367.34
ex VAT
In stock
Price Break
10+
$246.06
19+
$232.24
29+
$229.47
39+
$226.71
49+
$223.94
74+
$221.18
99+
$207.36
199+
$204.59
249+
$201.83
499+
$199.06
999+
$193.53
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M42x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 40mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 40mm |
|---|---|
| d2 max | 94mm |
| G 6H | M42x3 |
| B | 28mm |
| C1 max | 24mm |
| h1 | 145mm |
| a | 7deg |
| Dynamic load C | 280 kN |
| Static load Co | 166 kN |
| Weight | 2.3 kg |
| dk | 53mm |
| d4 | 58mm |
| l3 min | 65mm |
| l4 max | 194mm |
| l5 | 25mm |
| l7 min | 46mm |
| r1 min | 0.6mm |
| w h14 | 50mm |
