SKU: SIL6C-SKF

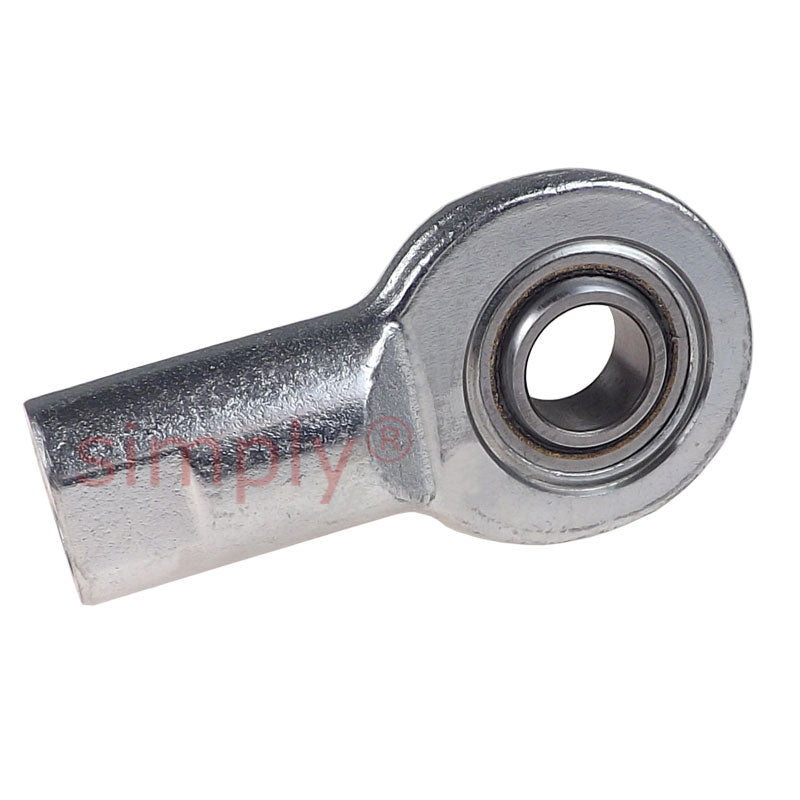

SKF SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread

Name: SKF SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
Brand: SKF
SKU: SIL6C-SKF
Price: 97.26 USD
Availability: InStock

$97.26 ex VAT

Sale Sold out

Equivalent to: GIL6UK

In stock

Price Break

10+ $65.15

19+ $61.49

29+ $60.76

39+ $60.03

49+ $59.30

74+ $58.56

99+ $54.90

199+ $54.17

249+ $53.44

499+ $52.71

999+ $51.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Brand / Quality:: SKF - High Quality
Thread Size:: M6
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: PTFE Sintered Bronze Lined

Technical

d	6mm
d2 max	22mm
G 6H	M6
B	6mm
C1 max	4.5mm
h1	30mm
a	13deg
Dynamic load C	3.6 kN
Static load Co	8.15 kN
Weight	0.023 kg
dk	10mm
d4	11mm
l3 min	11mm
l4 max	43mm
l5	8mm
l7 min	10mm
r1 min	0.3mm
w h14	9mm
