SKU: SIL8C-CDX

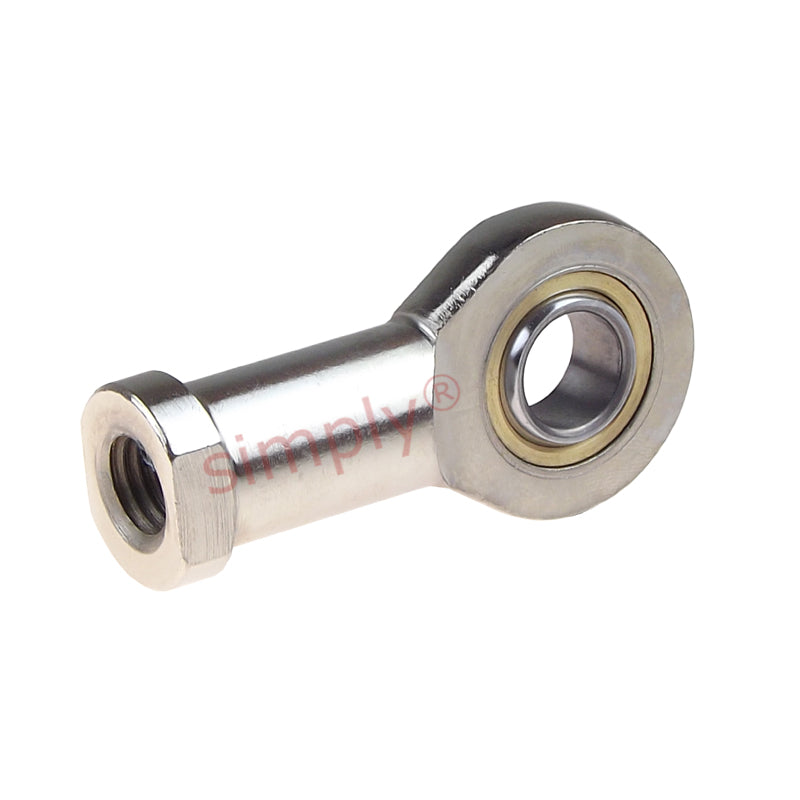

Codex SIL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
- Regular price
- $23.60 ex VAT
- Sale price
- $23.60
- Regular price
-
In stock
Quantity Price Breaks
10
$21.00
19
$19.82
29
$19.59
39
$19.35
49
$19.12
74
$18.88
99
$17.70
199
$17.46
249
$17.23
499
$16.99
999
$16.52
SKU:
SIL8C-CDX
Codex SIL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
- Regular price
- $23.60 ex VAT
- Sale price
- $23.60
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Technical
| d | = | 8mm |
| d2 max | = | 25mm |
| G | = | M8 |
| B | = | 8mm |
| C1 max | = | 6.5mm |
| h1 | = | 36mm |
| Max misalignment angle | = | 15 degrees |
| Dynamic load | = | 5.8 kN |
| Static load | = | 12.9 kN |
| dk | = | 13mm |
| d4 | = | 13mm |
| l3 min | = | 15mm |
| l4 max | = | 50mm |
| l5 | = | 9mm |
| l7 min | = | 11mm |
| r1 min | = | 0.3mm |
| w h14 | = | 11mm |
| Weight | = | 0.036 kg |
