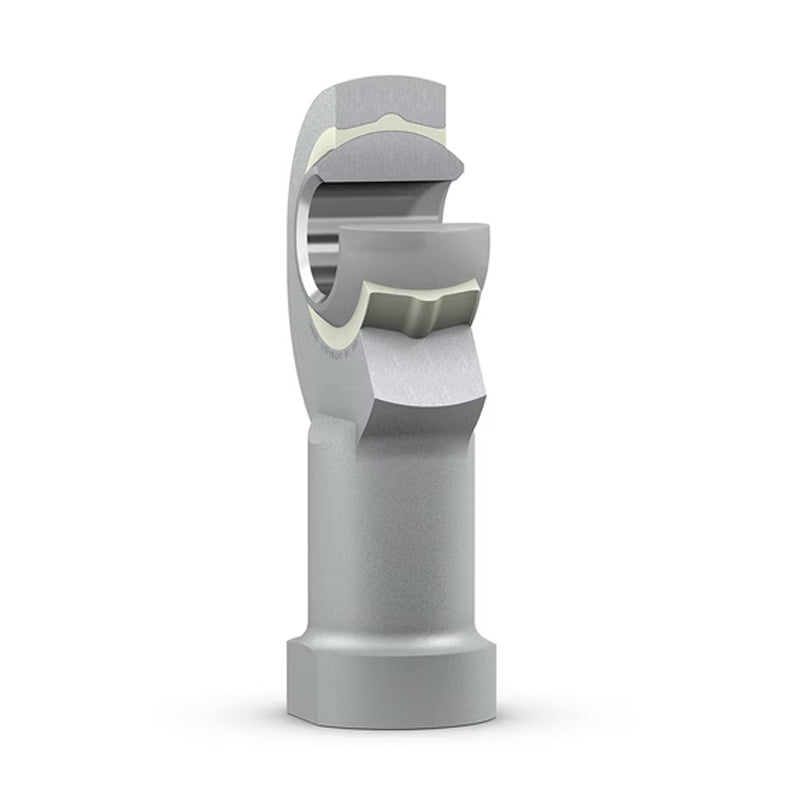

SKF SILKB14F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M14 Thread
SKF SILKB14F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M14 Thread
Regular price
$67.44
ex VAT
Regular price
Sale price
$67.44
ex VAT
Equivalent to: FSL-M14
In stock
Price Break
10+
$45.18
19+
$42.64
29+
$42.13
39+
$41.62
49+
$41.12
74+
$40.61
99+
$38.07
199+
$37.56
249+
$37.06
499+
$36.55
999+
$35.53
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h | 57mm |
| a | 16deg |
| Dynamic load C | 17 kN |
| Static load Co | 27.5 kN |
| Weight | 0.16 kg |
| dk | 25.4mm |
| d3 | 20mm |
| d4 max | 27mm |
| l3 min | 21mm |
| l4 max | 76mm |
| l5 | 8mm |
| l7 min | 18mm |
| r1 min | 0.3mm |
| w h14 | 22mm |
