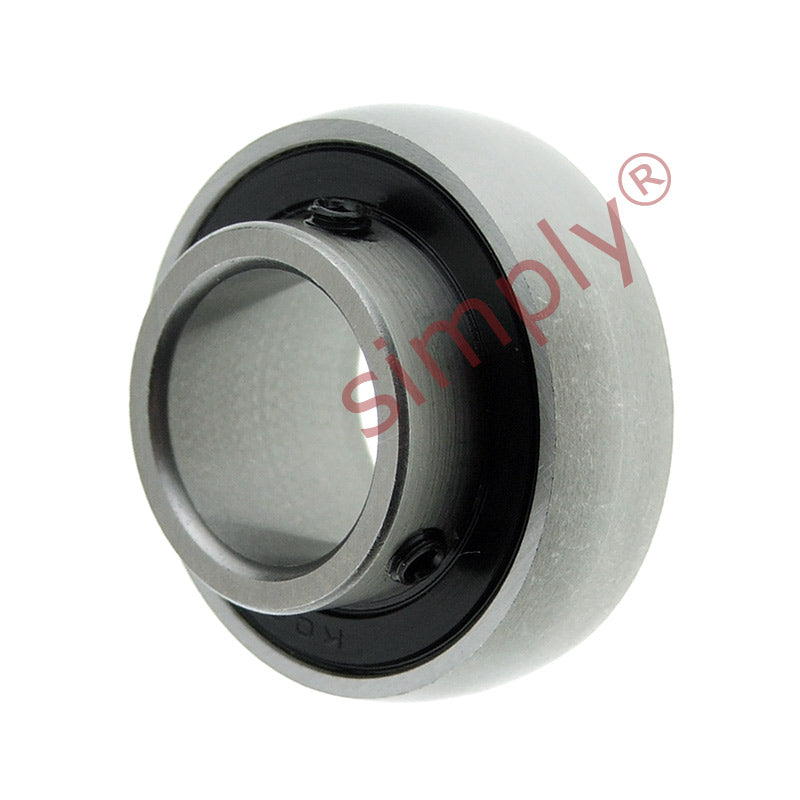

• SK000 Stainless Steel Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
1 1

SKU: SK000

SK000 Stainless Steel Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia

SK000 Stainless Steel Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
$18.00 ex VAT
$18.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.06
4+ $11.38
9+ $11.24
19+ $11.11
49+ $10.97
99+ $10.84
499+ $10.16
999+ $10.02
1999+ $9.89
2999+ $9.75
4999+ $9.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
10mm
Outside Diameter:
26mm
Style:
SK
Technical
Inside Diameter d 10mm
Outside Diameter D 26mm
Bi 14mm
Be 8mm
r 0.5mm
n 4mm
G 3mm
W 14.75mm
Grub screw M3x0.35
Dynamic load 470N ~ 47.927 kgf
Static load 200N ~ 20.394 kgf
Weight 0.02 kg
