• INA SK014205KRR Metric Parallel Outer Hexagonal Bore Bearing Insert with R Seals 22.23mm Bore
  • INA
1 2

SKU: SK014-205-KRR-INA

INA SK014205KRR Metric Parallel Outer Hexagonal Bore Bearing Insert with R Seals 22.23mm Bore

INA SK014205KRR Metric Parallel Outer Hexagonal Bore Bearing Insert with R Seals 22.23mm Bore
$35.49 ex VAT
$35.49 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.77
5+ $22.44
10+ $22.17
15+ $21.90
20+ $21.64
30+ $21.37
40+ $20.03
50+ $19.77
60+ $19.50
75+ $19.23
100+ $18.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

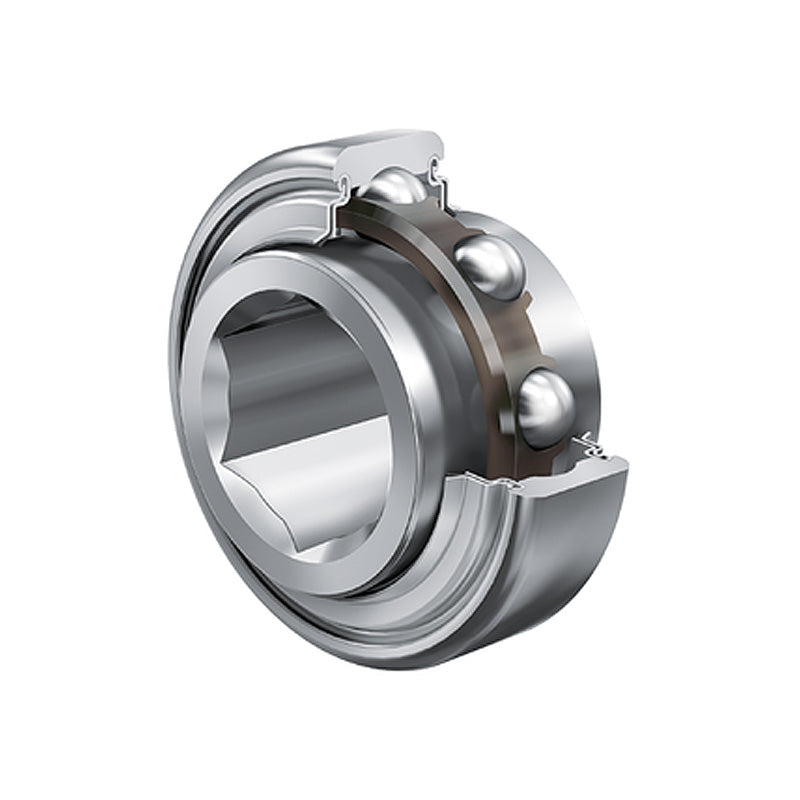

INA SK..-KRR Series Inserts: Bearing insert with parallel outer race, hexagonal bore and R seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect? coating. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Compensation of misalignment.

Brand / Quality:
INA - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
52mm
Width:
25.4mm
Seals / Shields:
Rubber Sealed
Technical
d 22.23mm
d 7/8 inch
Tolerance +0.15 / +0.00
Dsp 52mm
B 25.4mm
C 15mm
C2 16.5mm
D1 42.5mm
d1 33.8mm
F 26.5mm
r 0.12mm
Limiting speed nG Fett 900 rpm
Dynamic load Cr 14900 N
Static load C0r 7800 N
Weight 0.2 kg
