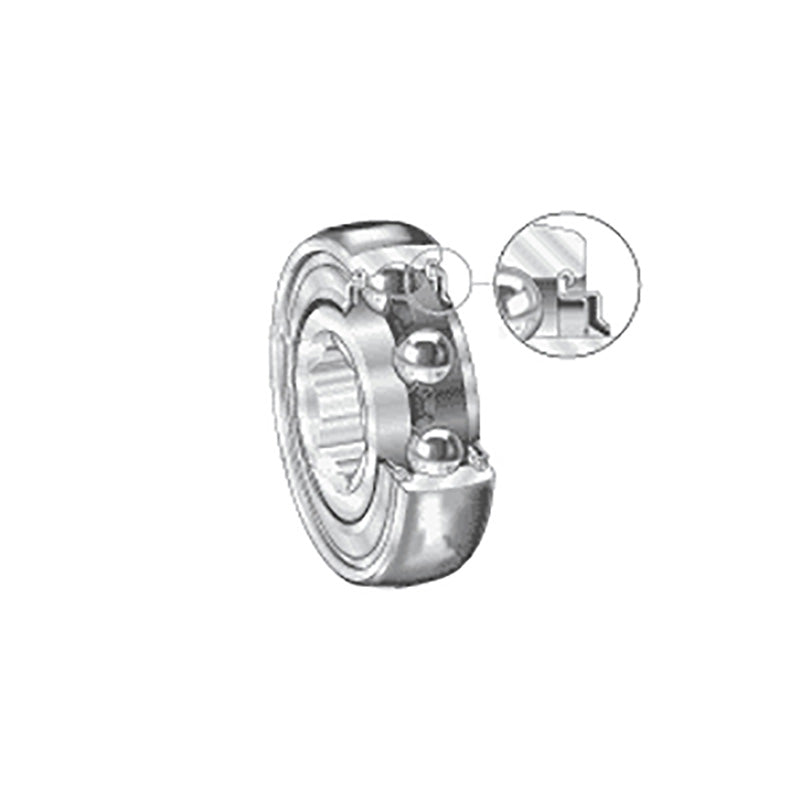

• INA SK102207KRRBAH10 Metric Spherical Outer Hexagonal Bore Bearing Insert with R Seals 28.58mm Bore
  • INA
1 2

SKU: SK102-207-KRR-B-AH10-INA

INA SK102207KRRBAH10 Metric Spherical Outer Hexagonal Bore Bearing Insert with R Seals 28.58mm Bore

INA SK102207KRRBAH10 Metric Spherical Outer Hexagonal Bore Bearing Insert with R Seals 28.58mm Bore
$63.60 ex VAT
$63.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $42.60
5+ $40.21
10+ $39.73
15+ $39.25
20+ $38.77
30+ $38.30
40+ $35.90
50+ $35.42
60+ $34.95
75+ $34.47
100+ $33.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA SK..-KRR-B Series Inserts: Bearing insert with spherical outer race, hexagonal bore and R seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
72mm
Width:
37.7mm
Seals / Shields:
Rubber Sealed
Technical
d 28.58mm
d 1-1/8 inch
Tolerance +0.175 / +0.03
Dsp 72mm
B 37.7mm
C 17mm
C2 20.5mm
D1 60.3mm
d1 46.8mm
F 38mm
r 0.25mm
Limiting speed nG Fett 800 rpm
Dynamic load Cr 25500 N
Static load C0r 15300 N
Weight 0.45 kg
