SKU: 6204-2Z/C4-SKF

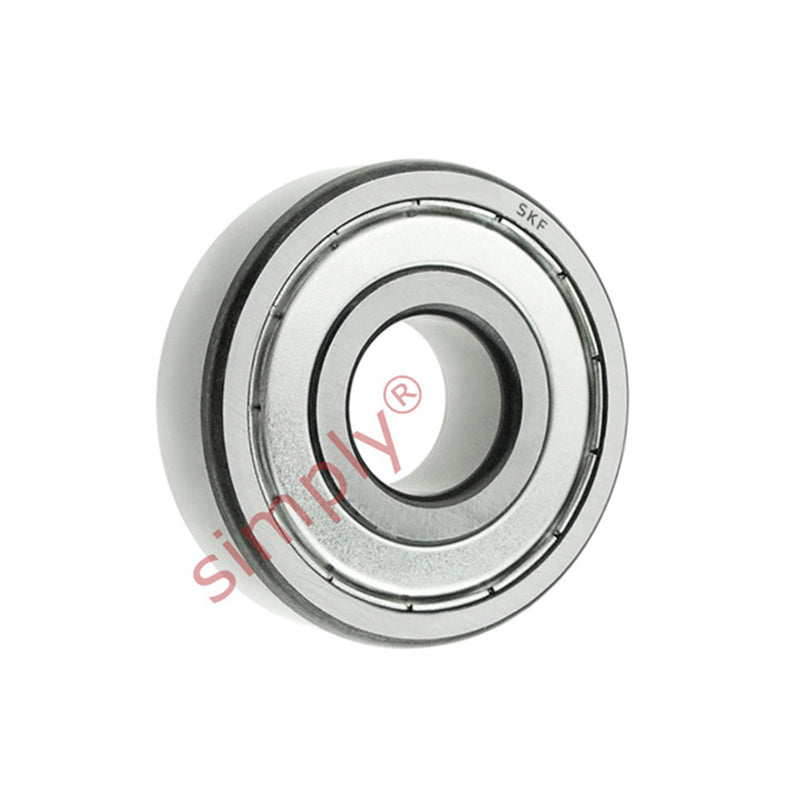

SKF 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Equivalent to: 6204ZZEC4 6204ZZC4 6204.2ZC4 6204KDDC4 6204DDC4 62042ZRC4 6204FFC4
Low stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.11 kg |
| d1 | 28.8mm |
| D2 | 40.6mm |
| r1r2 min | 1mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
