SKU: SL004_IMP_NAK
NAK SL004 Hardened Stainless Sleeve for Shafts 0.560-0.566 inch - Allow 7-10 Days
- Regular price
- $28.88 ex VAT
- Sale price
- $28.88
- Regular price
-
Not in stock
Quantity Price Breaks
10
$25.70
19
$24.26
29
$23.97
39
$23.68
49
$23.39
74
$23.10
99
$21.66
199
$21.37
249
$21.08
499
$20.79
999
$20.22
SKU:
SL004_IMP_NAK
NAK SL004 Hardened Stainless Sleeve for Shafts 0.560-0.566 inch - Allow 7-10 Days
- Regular price
- $28.88 ex VAT
- Sale price
- $28.88
- Regular price
-
Description

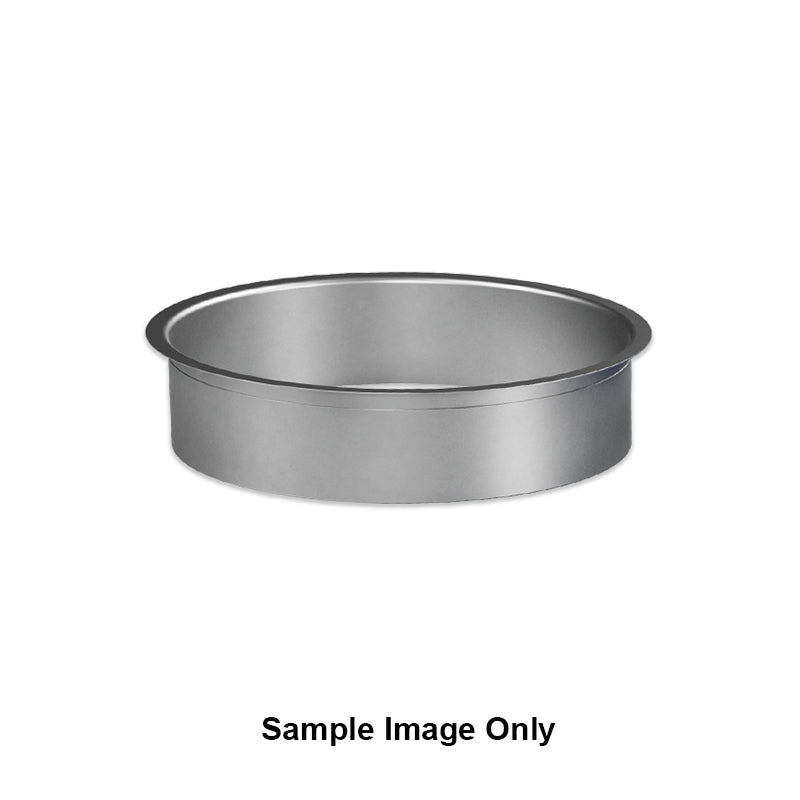

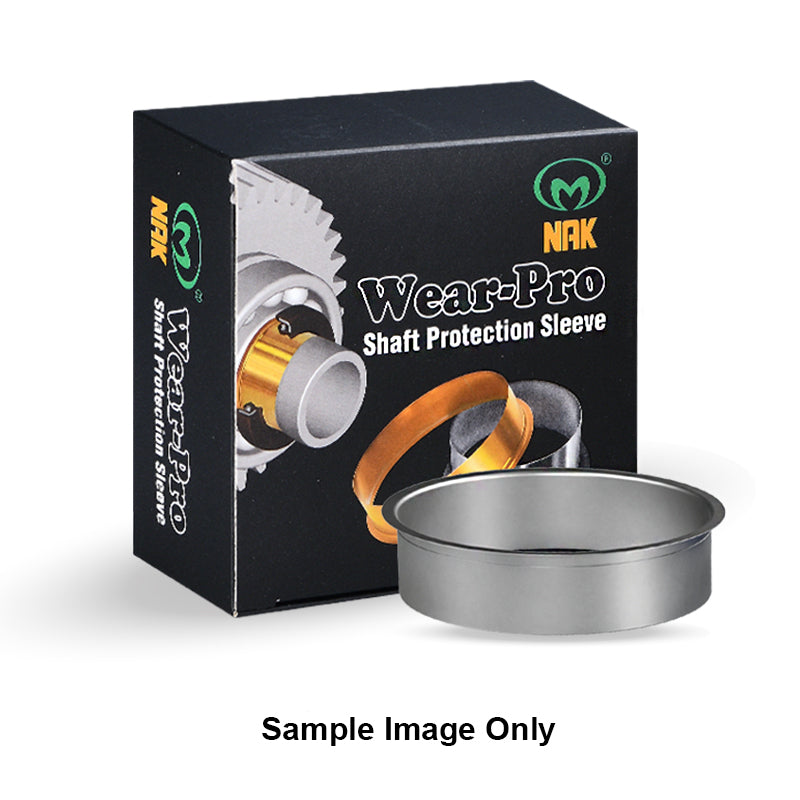

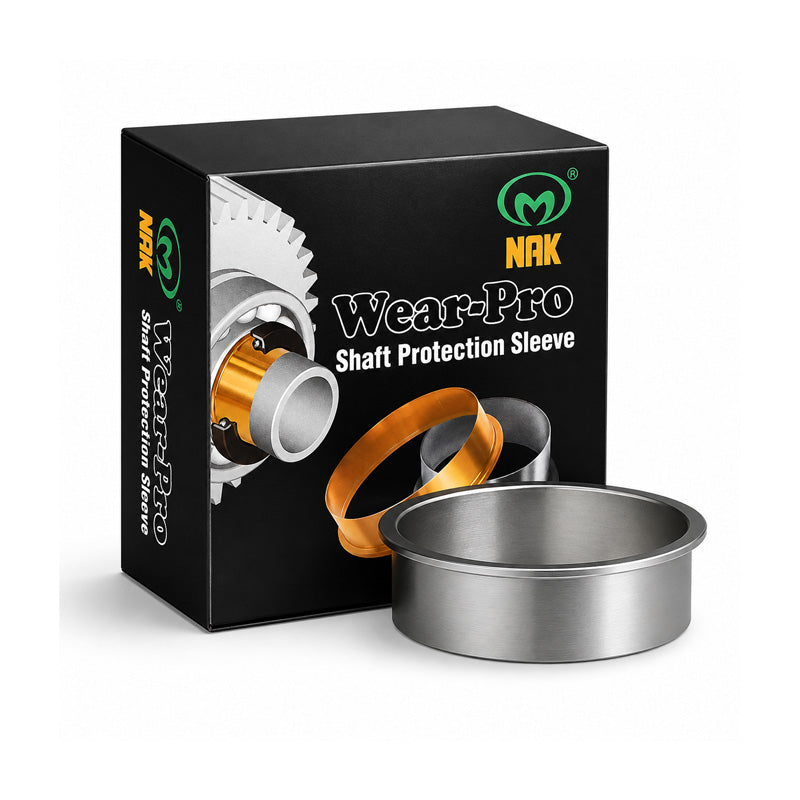

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical
| Shaft Diameter Range (A) | = | 0.560-0.566 inch |
| Nominal Shaft Diameter (A) | = | 0.563 inch |
| Flange Diameter (D) | = | 0.752 inch |
| Width on Shaft (X) | = | 0.248 inch |
| Overall Width (Y) | = | 0.39 inch |
| Installation Depth (Z) | = | 1.831 inch |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
