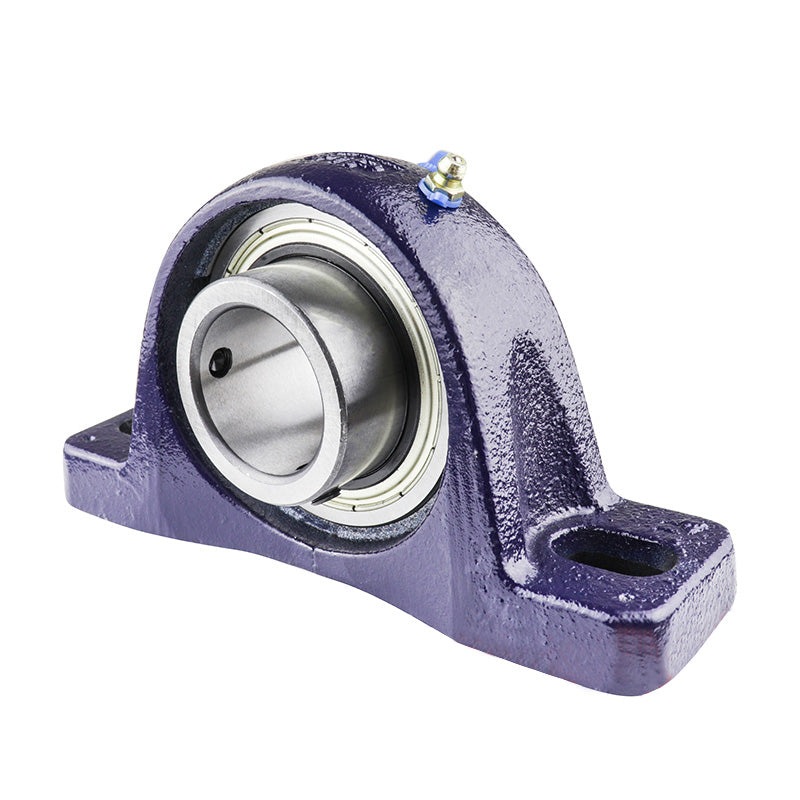

• RHP SL1-1/2DEC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentric Collar Full Width Insert
1 1

SKU: SL1.1/2DEC-RHP

RHP SL1-1/2DEC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentric Collar Full Width Insert

RHP SL1-1/2DEC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentric Collar Full Width Insert
$102.54 ex VAT
$102.54 ex VAT
Sale Sold out

In stock

Price Break
10+ $68.68
20+ $64.83
30+ $64.05
40+ $63.28
50+ $62.51
75+ $61.74
100+ $57.88
200+ $57.11
250+ $56.34
500+ $55.57
1000+ $54.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
SL
Bolt Hole Centres:
5-5.827 inch
Technical
Bore 1-1/2 inch
L 7.106 inch
H 1.937 inch
H1 0.728 inch
H2 3.878 inch
J max 5.827 inch
J min 5 inch
G 0.5 inch
A 2.008 inch
A1 1.358 inch
B3 2.218 inch
s2 0.845 inch
d2 2.374 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Insert <a href="advanced_search_result.php?keywords=1045-1-1/2DECG+insonly">1045-1-1/2DECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
