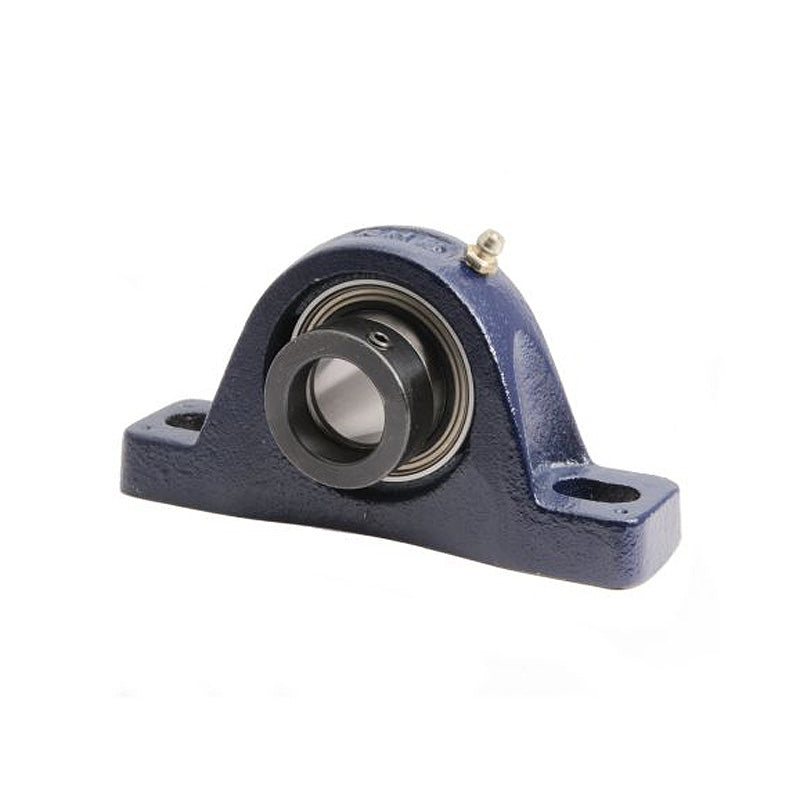

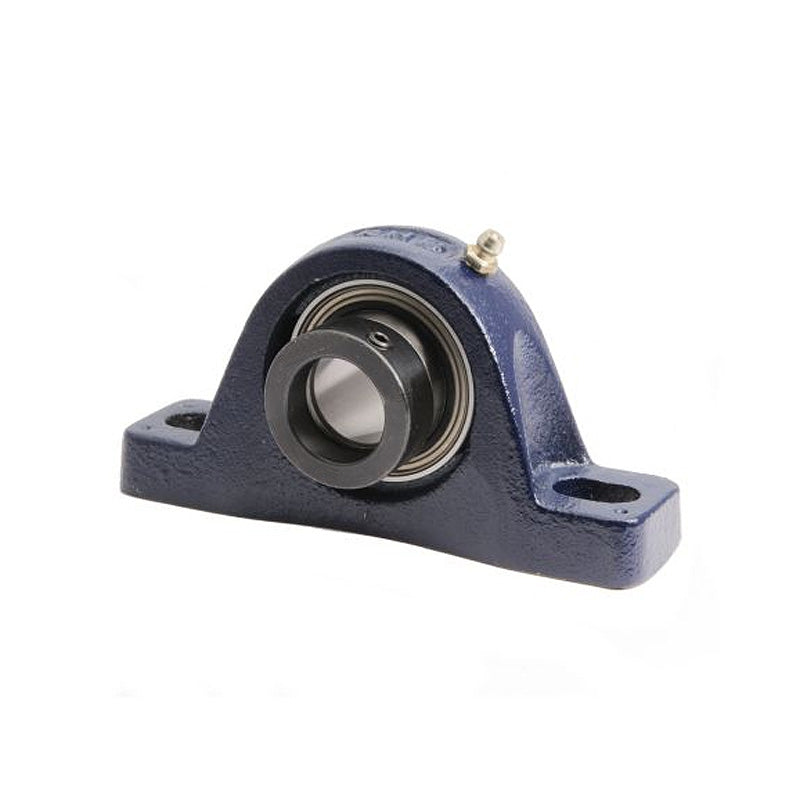

• RHP SL1-1/2EC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentic Collar Flat Back Insert
1 1

SKU: SL1.1/2EC-RHP

RHP SL1-1/2EC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentic Collar Flat Back Insert

RHP SL1-1/2EC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentic Collar Flat Back Insert
$91.43 ex VAT
$91.43 ex VAT
Sale Sold out

In stock

Price Break
10+ $61.24
20+ $57.80
30+ $57.11
40+ $56.43
50+ $55.74
75+ $55.05
100+ $51.61
200+ $50.92
250+ $50.23
500+ $49.54
1000+ $48.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
SL
Bolt Hole Centres:
5-5.827 inch
Technical
Bore 1-1/2 inch
L 7.106 inch
H 1.937 inch
H1 0.728 inch
H2 3.878 inch
J max 5.827 inch
J min 5 inch
G 0.5 inch
A 2.008 inch
A1 1.358 inch
B2 1.718 inch
s1 0.435 inch
d2 2.374 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Insert <a href="advanced_search_result.php?keywords=1245-1-1/2ECG+insonly">1245-1-1/2ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
